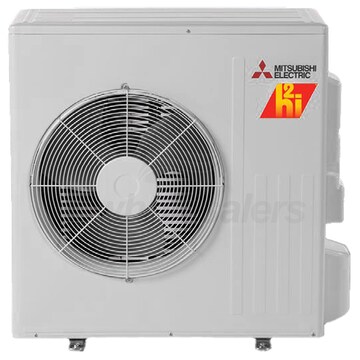

Mitsubishi - 24k BTU - GS-Series H2i Outdoor Condenser - Single Zone Only

Model: MUZ-GS24NAHZ Item Number: 150361
Mitsubishi MUZ-GS24NAHZ
PREVIOUS
NEXT
Mitsubishi MUZ-GS24NAHZ
Enlarge Image
Not For Individual Sale
Try This Instead
View Mitsubishi - 24k BTU Cooling + Heating - M-Series H2i Wall Mounted Air Conditioning System - 21.5 SEER2
Model:
MUZ-GS24NAHZ MSZ-GS24NA
$3,488.20
$3,423.70
Only 4 In-Stock
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    120 Pounds Learn More
    120 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
Specifications
View More

Specifications

General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
31400 BTU
Heating Capacity
36900 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
34 5/8 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
120 Pounds
Shipping Weight
138 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
