Mitsubishi 15,000 BTU Floor Mount Heat Pump Air Handler

Model: MFZ-KJ15NA-U1 Item Number: 68732
Mitsubishi MFZ-KJ15NA-U1
PREVIOUS
NEXT
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
Enlarge Image
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Watch Video
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
Mitsubishi MFZ-KJ15NA-U1
View All
Originally $1,626.00, you save 10%
Our Price: $1,463.40
synchrony card icon
$244 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, April 29th
Shipping to60601
Mitsubishi 15,000 BTU Floor Mount Heat Pump Air Handler
Mitsubishi 15,000 BTU Floor Mount Heat Pump Air Handler Model: MFZ-KJ15NA-U1 Item Number: 68732
$1,463.40
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    33 Pounds Learn More
    33 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi MFZ-KJ15NA-U1

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

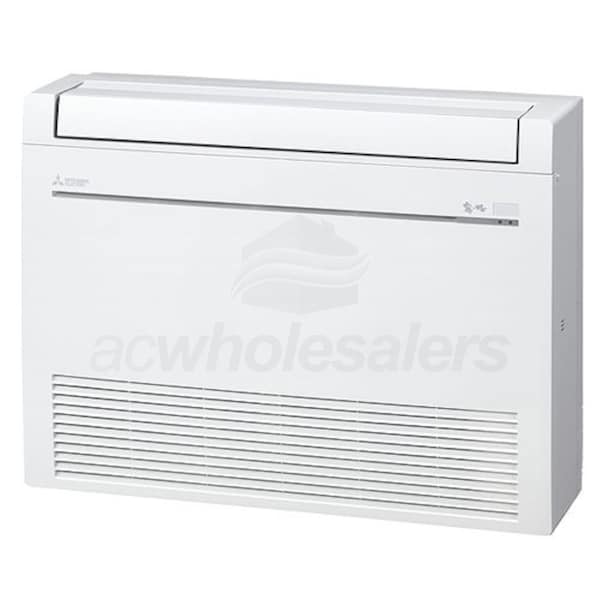

Overview for Mitsubishi MFZ-KJ15NA-U1The Mr. Slim series from Mitsubishi Electric MFZ Floor-standing indoor unit mounts three inches above the floor and has front panel access to the filter for ease of cleaning. The MFZ units provide energyefficient solutions to provide personalized comfort for difficult areas that maybe smaller or dont have usable space on the walls. This is an indoor unit only, and requires an outdoor unit to function. Outdoor unit must be purchased separately.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MFZ-KJ can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode and removes unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the room.
  • Powerful Mode
  • The powerful setting on the MFZ-KJ makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • FLOW Operation
  • When 2 FLOW is selected the unit will blow air from the top and front of the unit. When 1 FLOW is selected, air only blows from the top of the unit.
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Floor Mounted
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

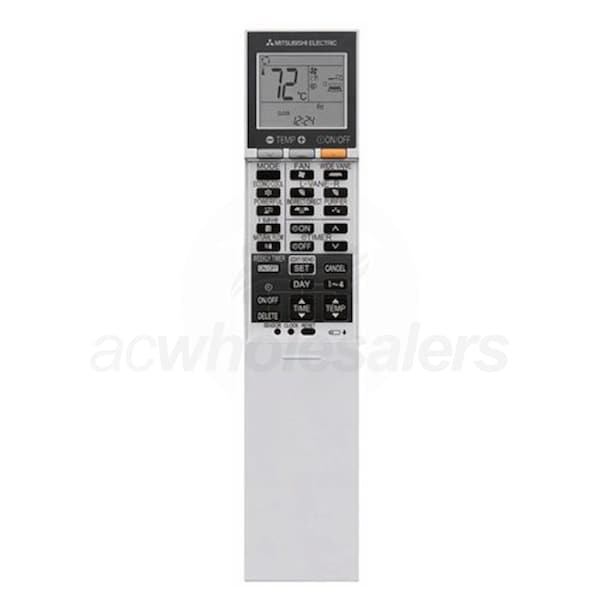

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Maximum Air Flow
    470 CFM
    Minimum Air Flow
    168 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 25/48 Inches
    Product Depth
    8 23/48 Inches
    Product Weight
    33 Pounds
    Shipping Height
    27 3/4 Inches
    Shipping Width
    32 3/4 Inches
    Shipping Depth
    12 Inches
    Shipping Weight
    43 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
