Mitsubishi Ceiling Cassette 4-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 19.7 SEER

Model: M4H42C09090912-B Item Number: 57169
Mitsubishi M4H42C09090912-B
PREVIOUS
NEXT
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Enlarge Image
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
Mitsubishi M4H42C09090912-B
View All
Our Price: $9,687.30
synchrony card icon
$122 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability January 11, 2023
Mitsubishi Ceiling Cassette 4-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 19.7 SEER
Mitsubishi Ceiling Cassette 4-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 19.7 SEER Model: M4H42C09090912-B Item Number: 57169
$9,687.30
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    313 Pounds Learn More
    313 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 13 items
  • product image

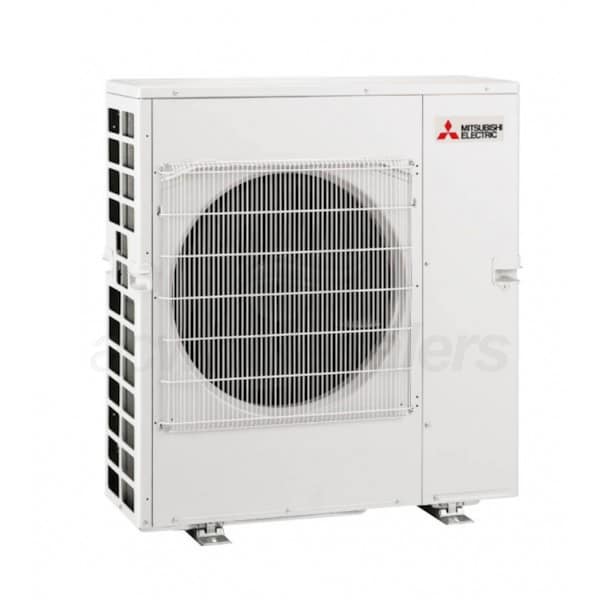

    (1) Mitsubishi - 42k BTU - M-Series Outdoor Condenser - For 2-5 Zones (MXZ-5C42NA3)
  • product image
    (1) Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF12NA.TH-NG)
  • product image
    (3) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi M4H42C09090912-B

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a four zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-5C42NA3 outdoor condenser, built with advanced technology, is combined with low-profile SLZ-KF ceiling cassette indoor units and four wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-5C42NA3 outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Hot-Start
  • In heating mode, Mitsubishi's hot start technology prevents cold drafts by stalling fan operation while the heat exchanger is warming up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • 3D i-see Sensor™
  • The SLZ-KF cassette unit includes an advanced thermal sensor that scans the room for hot and cold spots as well as occupancy. Using this information, the cassette unit can be programmed to direct airflow to certain areas of the zone in specific scenarios.
  • Condensate Removal System
  • The included SLZ-KF indoor units contain an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Advanced Remote Controller
  • The MHK1 remote controller kits have dual set point control and multiple scheduling options. They learn how quickly your zones are cooled and heated and adjust scheduled operations so that the zones are always the right temperature at the right time.
  • Inconspicuous Design
  • If you are looking for unobtrusive zoned comfort, this system is right for you. The only visible portion of the indoor units are the 2' x 2' grilles, which clock in at a slender depth of 13/16".
  • Recommended line set sizes for indoor unit connectivity:
  • SLZ-KF09NA.TH-NG: 1/4" x 3/8" Line Set (Qty 3)
  • SLZ-KF12NA.TH-NG: 1/4" x 3/8" Line Set
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 13 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 9 + 9 + 12
    Outdoor Unit Size
    42000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    19.7
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    9.2
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.3
    Cooling Power Input
    3770 Watts
    Heating Power Input
    3030 Watts
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    313 Pounds
    Shipping Weight
    317 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201754913
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    No
    Base Pan Heater Included
    No
    Performance
    Cooling BTU
    42000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    58 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32.5 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    262 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    3/8 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    3/8 Inch
    Product Height
    41 13/48 Inches
    Product Width
    37 19/48 Inches
    Product Depth
    13 Inches
    Product Weight
    189 Pounds
    Shipping Height
    46 3/4 Inches
    Shipping Width
    41 3/8 Inches
    Shipping Depth
    17 3/8 Inches
    Shipping Weight
    199 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    SLP-18FAEU
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    335 CFM
    Minimum Air Flow
    207 CFM
    Minimum Sound Level
    34 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    25 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 31/48 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    31 Pounds
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    SLP-18FAEU
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    335 CFM
    Minimum Air Flow
    207 CFM
    Minimum Sound Level
    25 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    31 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 1/2 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    31 Pounds
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Mini Split Controller
    Product Line
    RedLINK
    Product Category
    Mini Split Accessories
    Programmable
    Yes
    Power Source
    AA Batteries
    Interface
    Touchscreen
    Performance
    Minimum Operating Temperature
    32 F
    Maximum Operating Temperature
    120 F
    Dimensions
    Product Height
    4 1/12 Inches
    Product Width
    4 1/12 Inches
    Product Depth
    1 1/16 Inches
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Grille
    Product Line
    M-Series
    Dimensions
    Product Height
    6/15 Inch
    Product Width
    24 29/48 Inches
    Product Depth
    24 29/48 Inches
    Product Weight
    5.3 Pounds
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More
    Share
    ×
    Mitsubishi Ceiling Cassette 4-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k Indoor - 19.7 SEER
    Mitsubishi M4H42C09090912-B
    Loading
    Mitsubishi M4H42C09090912-B
    Mitsubishi M4H42C09090912-B
    Mitsubishi M4H42C09090912-B
    Mitsubishi M4H42C09090912-B
    Mitsubishi M4H42C09090912-B
    Mitsubishi M4H42C09090912-B
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
