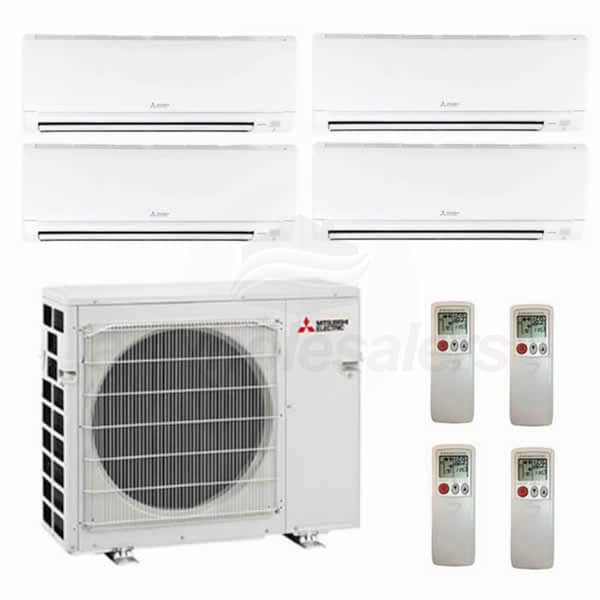

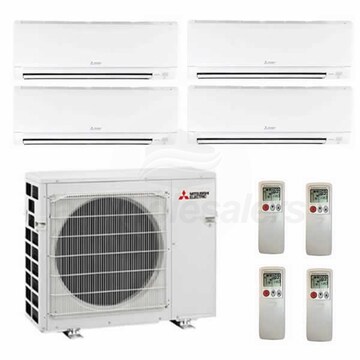

Mitsubishi Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 6k + 6k + 12k + 18k Indoor - 19.2 SEER

Model: M4H36W06061218 Item Number: 67337
Mitsubishi M4H36W06061218
PREVIOUS
NEXT
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Enlarge Image
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
View All
Our Price: $5,972.25
synchrony card icon
$75 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability January 12, 2023
Mitsubishi Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 6k + 6k + 12k + 18k Indoor - 19.2 SEER
Mitsubishi Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 6k + 6k + 12k + 18k Indoor - 19.2 SEER Model: M4H36W06061218 Item Number: 67337
$5,972.25
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    233 Pounds Learn More
    233 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 5 items
  • product image
    (1) Mitsubishi - 36k BTU - M-Series Outdoor Condenser - For 2-4 Zones (MXZ-4C36NA3)
  • product image
    (1) Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL18NA-U1)
  • product image
    (1) Mitsubishi GL-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL12NA-U1)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi M4H36W06061218

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a four zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-4C36NA3 outdoor condenser, built with advanced technology, is combined with quiet wall-mounted MSZ-GL indoor units and four wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 5 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 7 + 12 + 18
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
19.2
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
9.4
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
11.0
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
233 Pounds
Shipping Weight
237 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7505994
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
No
Base Pan Heater Included
No
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
56 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.1 Amps
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
31 1/3 Inches
Product Width
37 1/3 Inches
Product Depth
13 Inches
Product Weight
139 Pounds
Shipping Height
40 11/16 Inches
Shipping Width
40 15/16 Inches
Shipping Depth
17 11/16 Inches
Shipping Weight
149 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
GL-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
4.6 Pints/Hour
Maximum Air Flow
646 CFM
Minimum Air Flow
233 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
GL-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
2.5 Pints/Hour
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
GL-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
View More
Share
×
Mitsubishi Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 6k + 6k + 12k + 18k Indoor - 19.2 SEER
Mitsubishi M4H36W06061218
Loading
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
Mitsubishi M4H36W06061218
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
