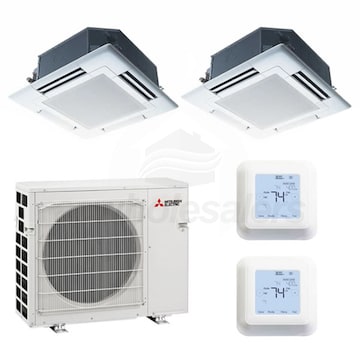

Mitsubishi Ceiling Cassette 2-Zone System - 24,000 BTU Outdoor - 12k + 15k Indoor - 20.0 SEER

Model: M2H24C12150000-B Item Number: 56942
Ask a Question
Mitsubishi M2H24C12150000-B
PREVIOUS
NEXT
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Enlarge Image
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
Mitsubishi M2H24C12150000-B
View All
Our Price: $5,102.25
$64 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability June 01, 2021
Mitsubishi Ceiling Cassette 2-Zone System - 24,000 BTU Outdoor - 12k + 15k Indoor - 20.0 SEER
Mitsubishi Ceiling Cassette 2-Zone System - 24,000 BTU Outdoor - 12k + 15k Indoor - 20.0 SEER Model: M2H24C12150000-B Item Number: 56942
$5,102.25
Backordered
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    199 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    M-Series
View More
Bundle Includes 7 items
  • (1) Mitsubishi 25,000 BTU Ductless Multi Zone Heat Pump Condenser (MXZ-3C24NA2-U1)
  • (1) Mitsubishi - 15k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF15NA.TH-NG)
  • (1) Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF12NA.TH-NG)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi M2H24C12150000-B

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a two zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-3C24NA2 outdoor condenser, built with advanced technology, is combined with low-profile SLZ-KF ceiling cassette indoor units and two wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Note
This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 7 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
MXZ-3C24NA2-U1 Specifications
SLZ-KF15NA.TH-NG Specifications
SLZ-KF12NA.TH-NG Specifications
MHK2 Specifications
SLP-18EAFU Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12 + 15
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
20.0
EER Learn More
13.6
HSPF Learn More
9.8
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
199 Pounds
Shipping Weight
203 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7505787
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Product Height
31 17/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
137 Pounds
Shipping Weight
147 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More
15
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Maximum Air Flow
405 CFM
Minimum Air Flow
221 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
207 CFM
Minimum Sound Level
34 dB
Maximum Sound Level Learn More
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 31/48 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Product Line
RedLINK
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
