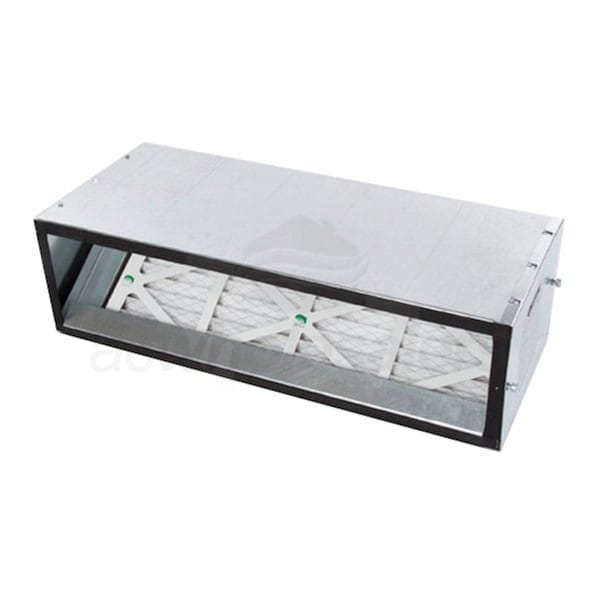

Mitsubishi FB Series Filter Box for SEZ-KD12/15NA and PEAA12AA4 Units

Model: FBL1-2 Item Number: 30601
Mitsubishi FBL1-2
PREVIOUS
NEXT
Mitsubishi FBL1-2
Enlarge Image
Mitsubishi FBL1-2
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
Mitsubishi FBL1-2
Watch Video
View All
Originally $422.25, you save 12%
Our Price: $371.70
synchrony card icon
$62 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Wednesday, November 6th
Shipping to60601
Mitsubishi FB Series Filter Box for SEZ-KD12/15NA and PEAA12AA4 Units
Mitsubishi FB Series Filter Box for SEZ-KD12/15NA and PEAA12AA4 Units Model: FBL1-2 Item Number: 30601
$371.70
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    15 Pounds Learn More
    15 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
Features
View More

Features

Overview for Mitsubishi FBL1-2

Overview for Mitsubishi FBL1-2FB Series filter boxes are available in compatible sizes for all Mr. Slim horizontal ducted indoor units. FBL1 filter boxes include 1 thick pleated MERV 8 filter(s) and FBM2 boxes include 2 inch thick pleated MERV 13 filter(s) installed. Filters are tested in accordance with ANSI/ASHRAE Standard 52.2 and Rated Class 2 under U.L. Standard 900. The cabinet is constructed of non-insulated 20 gauge G-60 galvanized steel with foam gasket and provides an air-tight connection to indoor unit and access door. Gasket material complies with UL 723 requirements. A screw-through cabinet design for secure attachment to indoor unit and return connection in rear is easily field-converted to bottom return.
  • MERV Rated Filtration
  • This filter kit provides additional filtration for mini split indoor units installed in short run ducting. The included MERV 8 rated filter captures contaminants as small as 3 micrometers, including pollen, dust, mold, and dander.
  • Application Flexibility
  • The FBL1-2's filter box can be easily field converted from a rear return air application to a bottom return application.
  • Product Compatible With
  • Mitsubishi SEZ-KD12NA4R1.TH Concealed Duct Mini Split Indoor Units
  • Mitsubishi SEZ-KD15NA4R1.TH Concealed Duct Mini Split Indoor Units
  • Mitsubishi PEA-A12AA4R1.TH Concealed Duct Mini Split Indoor Units
  • Product Includes
  • (1) Filter Box
  • (2) 12" x 20" x 1" and 12 x 14" x 1" MERV 8 Filters
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Filter
    Product Line
    FBL-Series
    Product Category
    Mini Split Accessories
    Performance
    Filter Efficiency
    8 MERV
    Dimensions
    Product Height
    7 7/8 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    12 Inches
    Product Weight
    15 Pounds
    Shipping Weight
    18 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Days
    90
