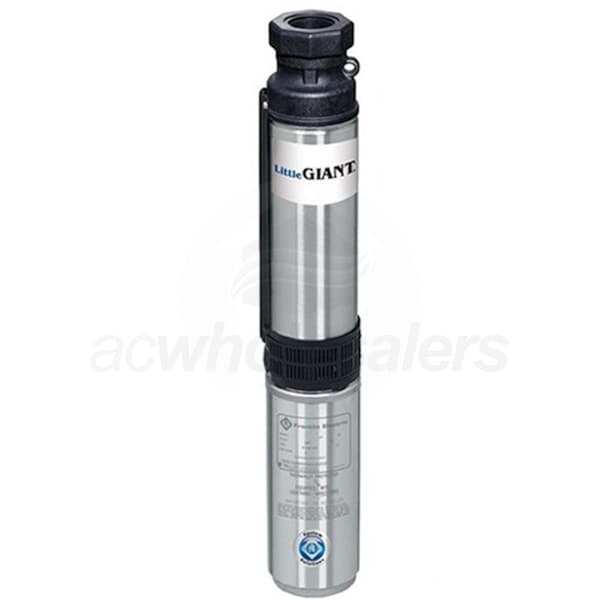

Little Giant W22G15S9-32P 1-1/2 HP Deep Well Sub Pump 3-Wire 230V

Model: 558539 Item Number: 13731
Little Giant 558539
PREVIOUS
NEXT
Little Giant 558539
Enlarge Image
Our Price: $2,032.80

Factory-Direct
Ships in 3-4 Weeks
Little Giant W22G15S9-32P 1-1/2 HP Deep Well Sub Pump 3-Wire 230V
Little Giant W22G15S9-32P 1-1/2 HP Deep Well Sub Pump 3-Wire 230V Model: 558539 Item Number: 13731
$2,032.80
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Pump
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 558539

  • *Please Note* - Requires Control Box For Operation (Not Included)
  • 4" Submersible Deep Well Pump (3-Wire 230V)
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Franklin Electric Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Flomatic Check Valve
  • Prevents backflow and ensures system pressure
  • Removable Suction Screen
  • Helps to prevent debris from clogging impellers
  • Celcon Disk
  • Provides close tolerances for increased performance
  • Ceramic Bearing Sleeve & Stainless Steel Up-Thrust Washer
  • Prevents excessive wear and provides added durability
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Minimizes friction while providing smooth & quiet operation
  • 2-Year Warranty
  • *Note* Installation Checklist Can Be Found On Spec Tab
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Water Pump
    Motor
    Voltage
    240 Volt Single-Phase
    Wire
    3-Wire
    Pump
    Gallons Per Minute
    22 Gallons
    Outlet Diameter
    1-1/4 Inch
    Housing Material
    Stainless Steel
    Impeller Material
    Plastic
    Maximum PSI
    121
    Total Head Lift
    280 Feet
    Submersible
    Yes
    Engine
    Horsepower
    1.5 hp
    Overview
    Product Category
    Water Pump
    Weight
    40 Pounds
    Consumer Warranty
    2 Years
    Product Length
    27 Inches
    Product Width
    3.9 Inches
    UPC
    010121134980
    Accessories
    Control Box
    Sold Separately
