Little Giant 9SP2V2D-9SN Pit+Plus Pre-Packaged Premium Simplex System

Model: 509685 Item Number: 70701
Little Giant 509685
PREVIOUS
NEXT
Little Giant 509685
Little Giant 509685
Little Giant 509685
Little Giant 509685
Enlarge Image
Little Giant 509685
Little Giant 509685
Watch Video
Little Giant 509685
Watch Video
Little Giant 509685
Watch Video
Little Giant 509685
Little Giant 509685
Little Giant 509685
View All
Our Price: $678.00

Factory-Direct
Ships in 16-20 Weeks
Little Giant 9SP2V2D-9SN Pit+Plus Pre-Packaged Premium Simplex System
Little Giant 9SP2V2D-9SN Pit+Plus Pre-Packaged Premium Simplex System Model: 509685 Item Number: 70701
$678.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Sump Pump
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 509685

Overview for Little Giant 509685

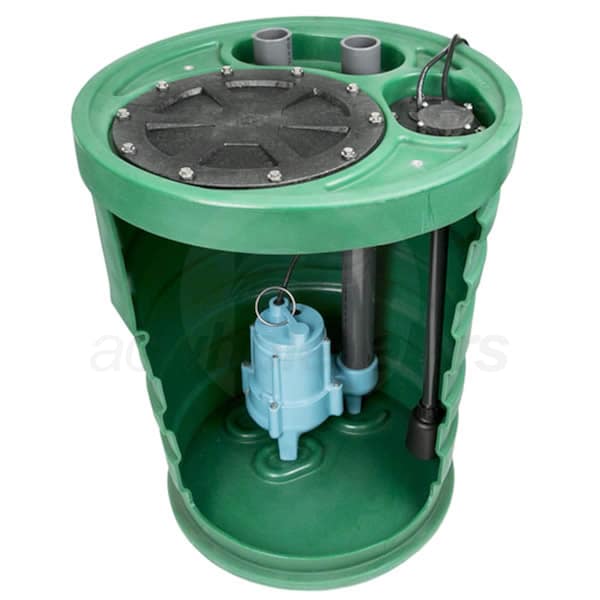

For collection of sewage, effluent, drainage and seepage water. Suitable for homes, farms, light commercial and industrial use. Pre-Packaged units are provided unassembled with all components inside of the basin.
  • Pit+Plus® Sr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess

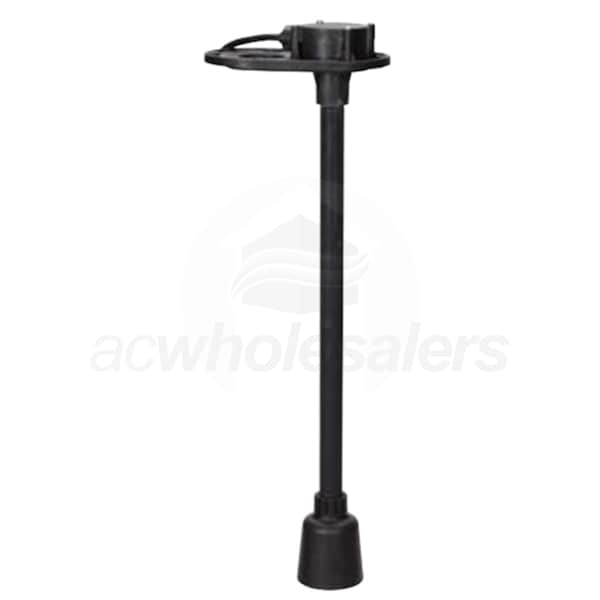

  • ECM™ (External Control Module) Switch
  • Monitor liquid level for operation of a switch outside the basin to prevent failure
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 30" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Cast Iron Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Check Valve Sold Separately
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Sump Pump
    Base
    Base Material
    Cast Iron
    Motor
    Voltage
    120 Volt
    Running Amps
    8.5
    Pump
    Housing Material
    Cast Iron
    Solids Handling Size
    2 inch
    Handles Solids
    Yes
    Maximum PSI
    8.7
    Total Head Lift
    20 Feet
    Float Type
    Electronic
    GPH @ 0 feet
    6600
    GPH @ 5 feet
    6600
    GPH @ 10 feet
    4200
    GPH @ 15 feet
    1800
    Discharge Port Size
    2 Inch
    Check Valve Included
    No
    Float On
    15
    Float Off
    8
    Engine
    Horsepower
    .4 hp
    Overview
    Product Category
    Sump Pump
    Assembly Required
    No
    Consumer Warranty
    2 Years
    Product Length
    24 Inches
    Product Width
    24 Inches
    Product Height
    32 Inches
    UPC
    010121147706
    Accessories
    Alarm
    No
    Wi-Fi enabled
    No
