Little Giant 6EC-CIM -RF 1/3 HP Cast Sub Pump w/ Tether Float 20' cord

Model: 506858 Item Number: 70655
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Little Giant 506858
PREVIOUS
NEXT
Little Giant 506858
Little Giant 506858
Enlarge Image
Little Giant 506858
Little Giant 506858
View All
Our Price: $286.00

Factory-Direct
Ships in 16-20 Weeks
Little Giant 6EC-CIM -RF 1/3 HP Cast Sub Pump w/ Tether Float 20' cord
Little Giant 6EC-CIM -RF 1/3 HP Cast Sub Pump w/ Tether Float 20' cord Model: 506858 Item Number: 70655
$286.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Sump Pump
View More
Power
Select Attribute
Style
Select Attribute
Cord Length
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 506858

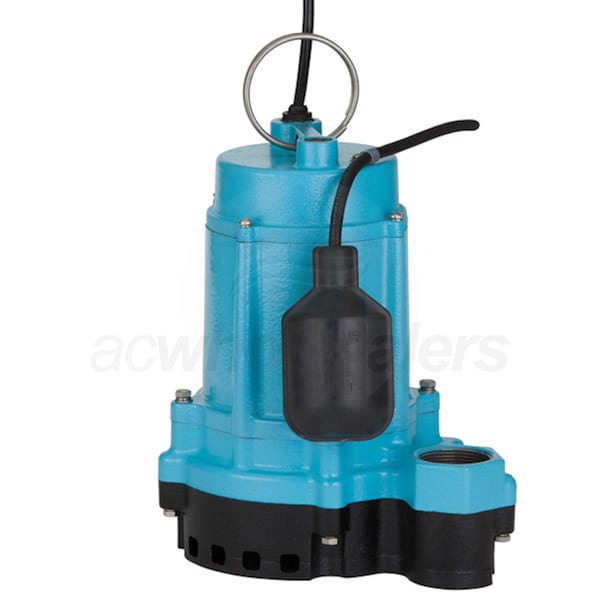

  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Piggyback Tether Float Switch
  • Increase cycle time for optimal water removal
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
    • Specifications
    View More

    Specifications

    General Information
    Product Category
    Sump Pump
    Base
    Base Material
    Cast Iron
    Min Sump Basin Size
    18 Inch
    Motor
    Voltage
    120 Volt
    Thermal Protection
    Yes
    Power Cord Length
    20 Feet
    Oil Free Motor
    No
    Pump
    Housing Material
    Cast Iron
    Impeller Material
    Nylon
    Solids Handling Size
    .5 inch
    Maximum PSI
    12.1
    Total Head Lift
    28 Feet
    Float Type
    Piggy-Back Tether Switch

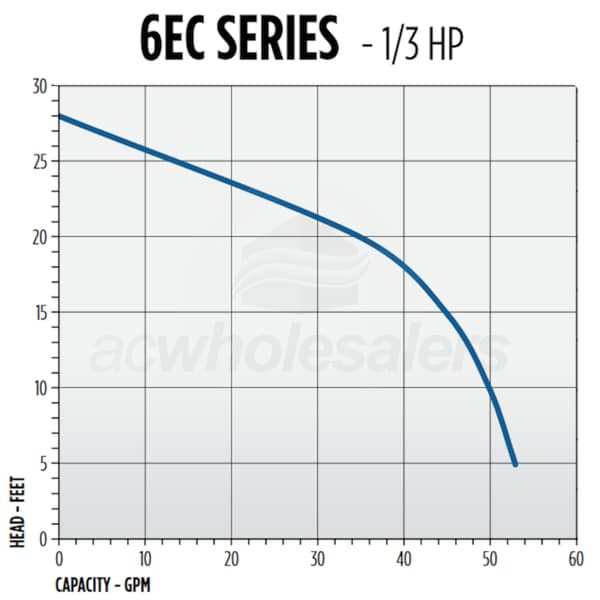

    GPH @ 0 feet
    3180
    GPH @ 5 feet
    3180
    GPH @ 10 feet
    3000
    GPH @ 15 feet
    2520
    GPH @ 20 feet
    2040
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    No
    Float On
    13-15 Inches
    Float Off
    6-8 Inches
    Manual Override
    No
    Engine
    Horsepower
    .33 hp
    Overview
    Product Category
    Sump Pump
    Weight
    35.5 Pounds
    Certification
    cCSAus
    Consumer Warranty
    2 Years
    Product Length
    10.9 Inches
    Product Width
    8.79 Inches
    Product Height
    11.28 Inches
    UPC
    010121149144
