Little Giant 12 VDC Automatic Sump Pump Back-Up System

Model: 506400 Item Number: 10292
Little Giant 506400
PREVIOUS
NEXT
Little Giant 506400
Enlarge Image
Little Giant 506400
Little Giant 506400
Watch Video
Little Giant 506400
Watch Video
Little Giant 506400
Watch Video
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Voltage
    12 Volt DC
    Running Amps
    8.4
    Oil Free Motor
    No
Features
View More

Features

Overview for Little Giant 506400

Overview for Little Giant 506400

The SPBS-12 provides extra protection in the event the primary sump pump fails, an obstruction in the sump pit blocks flow, or a power outage occurs. It will also function as an alarm system if the primary pump fails to empty the sump pit.

The back up system is powered by a 12 VDC battery ( not included ). The battery should be a deep-cycle marine battery rated 105 to 140 amp-hours. ( A 140 amp-hour battery can provide in excess of 9 hours of continuous operation. )

A controller / charger monitors the battery condition and charges the battery when required. It will alert the homeowner if there is a problem with the battery not charging.
  • Automatic Backup Sump Pump System
  • Emergency protection from pump failure or power outages
  • Professional-Grade 12V DC 10-Amp Battery Charger w/ Alarm
  • Monitors the battery and charges when required
  • Alerts you when system has operated or problem exists
  • Audible Alarm Sounds When
  • Pump runs (must be reset by homeowner)
  • Battery is discharged
  • Indicator LED Lights For
  • Power "ON", Battery Charging & Battery Fully Charged

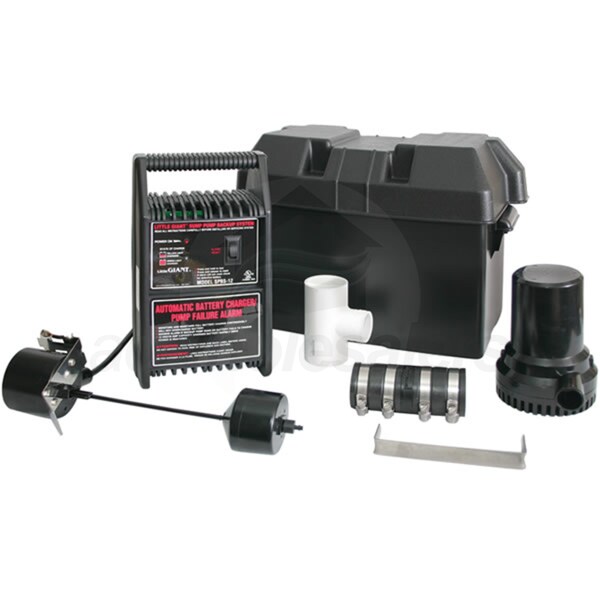

  • System Includes:
  • 10-Amp 12V DC Battery Charger
  • 8.4-Amp 12V Thermoplastic Sump Pump w/ Mounting Bracket
  • Vertical Float Switch
  • Battery Box
  • Check Valve & 1-1/2" PVC 'T"
  • Requires Deep Cycle Marine Battery (Not Included)
  • Battery should be rated from 105 to 140 Amp hours
  • 1-Year Limited Warranty
  • Specifications
    View More

    Specifications

    Motor
    Voltage
    12 Volt DC
    Running Amps
    8.4
    Oil Free Motor
    No
    Pump
    Housing Material
    Thermoplastic
    Handles Solids
    No
    Float Type
    Vertical Float
    GPH @ 0 feet
    1600
    GPH @ 5 feet
    1360
    GPH @ 10 feet
    1000
    GPH @ 15 feet
    570
    GPH @ 20 feet
    140
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    Yes
    Manual Override
    No
    Overview
    Weight
    17 Pounds
    Consumer Warranty
    1 Year
    UPC
    010121064003
