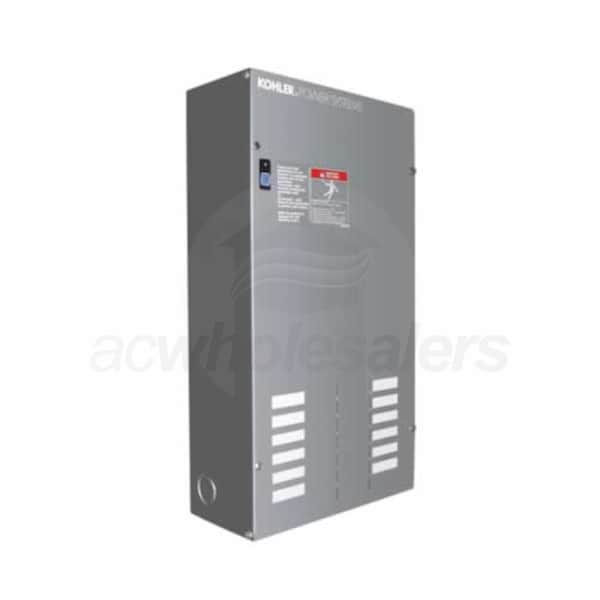

Kohler RDT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model: RDT-CFNA-100B-MV04 Item Number: 2199
Kohler RDT-CFNA-100B-MV04
PREVIOUS
NEXT
Kohler RDT-CFNA-100B-MV04
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
View Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch
Model:
RDT-CFNC-0100A
$779.00
Factory-Direct
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler RDT-CFNA-100B-MV04

  • Prewired Square D type QO load center
  • 100 amp load centers use up to 16 circuit breakers - not included
  • Standard Features
  • UL listed
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 1 (indoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    27 Pounds
    Consumer Warranty
    5 Years
    Product Length
    24 Inches
    Product Width
    13 Inches
    Product Height
    6 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Enclosure
    NEMA 1R
    Number of Circuit Breakers
    16
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Not Included
    ATS Load Shedding
    Not Included
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    UL Listed
    Yes
