Kohler 20RESCL-200SELS 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding)

Model: 20RESCL-200SELS Item Number: 66479
Kohler 20RESCL-200SELS
PREVIOUS
NEXT
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Enlarge Image
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
Kohler 20RESCL-200SELS
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler 20RESCL-200SELS

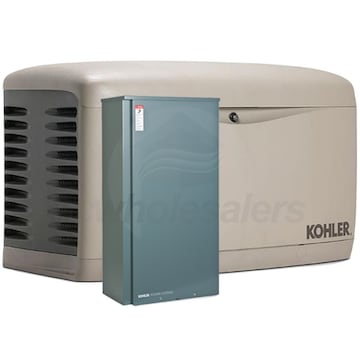

  • Kohler 20RESCL Air-Cooled Standby Generator System
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • Mounts between meter and main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Fast Response Time & PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Kohler generators restore power in as little as 10 seconds
  • Cleaner Power for Sensitive Electronics
  • Protects sophisticated electronics with low distortion (THD)
  • RDC2 Controller
  • Provides advanced control, system monitoring & diagnostics
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • 2-Line Backlit LCD Digital Display & Real-Time Clock To Set Weekly Exercise
  • No More Codes - Easy to read local data access in all lighting conditions
  • Includes OnCue Plus Remote Monitoring
  • Real-time power status and the ability to manage your entire backup system
  • Kohler Command PRO® OHV Engine
  • Runs on clean-burning Natural Gas or LPG
  • Hydraulic valve lifters eliminate routine valve adjustments
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 69 dB(A) @ 23 ft.
  • Exclusive 100% Corrosion-Proof Composite Enclosure* & Polymer Base
  • Will not rust - even in harsh seaside environments
  • ^^^Not Compatible For Off-Grid Applications^^^^
  • Approved for stationary standby applications in locations served by a reliable utility source
  • *Note - Must Be Installed At Least 5' From Structure
  • ***Requires PRM (Sold Separately)
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    500 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    48 Inches
    Product Width
    26.2 Inches
    Product Height
    29 Inches
    UPC
    650531162557
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    20000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    18000 Watts
    LP Power Capacity
    20000 Watts
    NG Fuel Consumption @ 50% Load
    161 ft³/hr
    NG Fuel Consumption @ 100% Load
    281 ft³/hr
    LP Fuel Consumption @ 50% Load
    2.3 gallons/hr
    LP Fuel Consumption @ 100% Load
    3.9 gallons/hr
    Rated Amps
    83 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    69 Run (64 Test) dbA
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    200-Amps
    Battery
    Not Included (500 CCA)
    Enclosure
    Composite
    A/C Ton Rating
    2 x 5-Tons
    Mounting Pad
    Composite (Included)
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Service Disconnect
    Yes
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Sold Separately
    Engine
    Engine Brand
    Kohler
    Starting System
    12v Auto Start
    CC
    999 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
