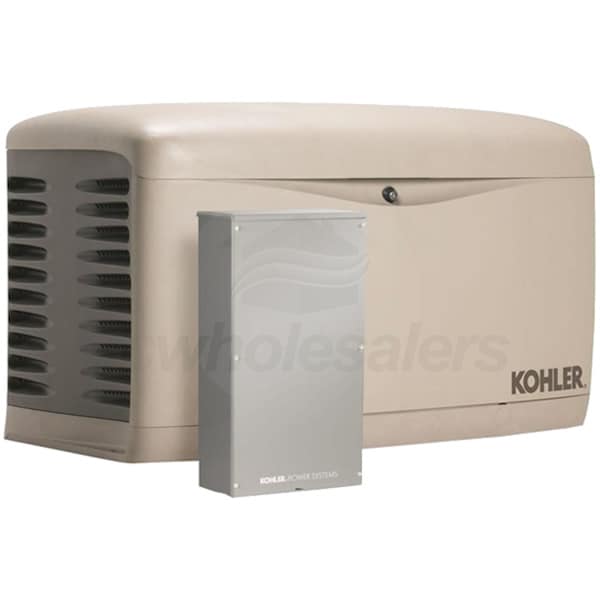

Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding)

Model: 14RESAL-200SELS Item Number: 50707
Kohler 14RESAL-200SELS
PREVIOUS
NEXT
Kohler 14RESAL-200SELS
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler 14RESAL-200SELS

  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • NEMA 3R Enclosure mounts between meter & main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Fast Response & Cleaner Power for Sensitive Electronics
  • Kohler™ generators restore power in as little as 10 seconds
  • Protects sophisticated electronics with low distortion (THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • RDC2 Controller w/ Real-Time Clock To Set Weekly Exercise
  • LCD Display (2-Line); No More Codes - LED ATS status lights
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • OnCue Plus Remote Monitoring System (Included)
  • Built-In Ethernet card, no hardware needed
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Premium Warranty - 5-Year / 2,000-Hour Limited Warranty
  • *Note - Must Be Installed At Least 5' From Structure
  • ***Requires PRM (Sold Separately)
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    420 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    48 Inches
    Product Width
    26.2 Inches
    Product Height
    29 Inches
    UPC
    650531126214
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    14000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    12000 Watts
    LP Power Capacity
    14000 Watts
    NG Fuel Consumption @ 50% Load
    124 ft³/hr
    NG Fuel Consumption @ 100% Load
    193 ft³/hr
    LP Fuel Consumption @ 50% Load
    1.8 gallons/hr
    LP Fuel Consumption @ 100% Load
    2.3 gallons/hr
    Rated Amps
    58 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    67 Run (63 Test) dbA
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    200-Amps
    Battery
    Not Included (500 CCA)
    Enclosure
    Composite
    A/C Ton Rating
    2 x 5-Tons
    Mounting Pad
    Composite (Included)
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Service Disconnect
    Yes
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Sold Separately
    Engine
    Engine Brand
    Kohler
    Starting System
    12v Auto Start
    CC
    725 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
