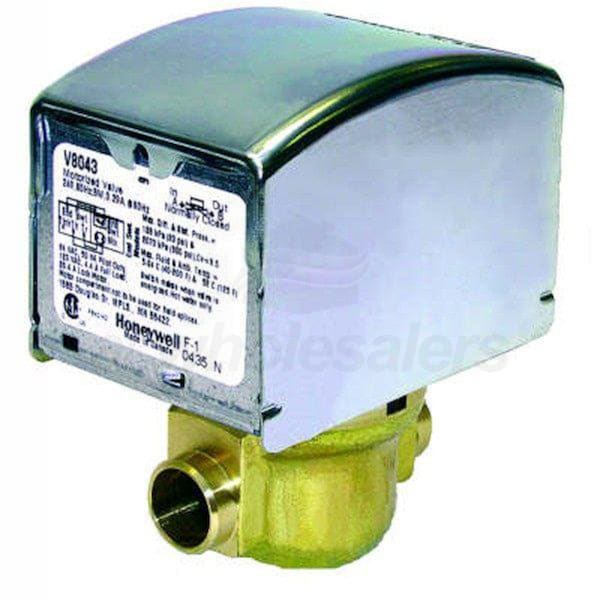

Honeywell 3/4in. Sweat Zone Valve N/C- 3.5 Cv 24V

Model: V8043F5093 Item Number: 34573
Honeywell V8043F5093
PREVIOUS
NEXT
Honeywell V8043F5093
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    2 Pounds Learn More
    2 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    V4043
    Valve Type
    Zone
Features
View More

Features

Overview for Honeywell V8043F5093

The Honeywell Home-Resideo V8043F5093 Motorized Quick Fit Zone Valve consists of an actuator motor and valve assembly for controlling the flow of hot water. The Honeywell Home-Resideo V8043F5093 Motorized Quick Fit Zone Valve is a 0.75 inch Two-way, Straight-Through Sweat valve, with a Cv of 8.
  • Honeywell Home-Resideo V8043F5093 Features
  • All models may be installed without disassembling the valve
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Quick Fit pushbutton powerhead makes it easy to remove for service
  • Series 5000 replacement powerhead is backward compatible with series 1000 zone valves
  • Innovative motor technology offers silent operation, water hammer resist and longer life
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    V4043
    Valve Type
    Zone
    Connection Type
    Sweat
    Body Pattern
    Two-way, Straight -Through
    Maximum Differential Pressure Range
    8 PSI
    UPC
    085267833585
    Performance
    CV Value
    8
    Electrical Data
    Voltage
    24 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Connection Size
    3/4 Inch
    Product Height
    3 9/16 Inches
    Product Width
    2 3/4 Inches
    Product Length
    3 3/4 Inches
    Product Weight
    2 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
