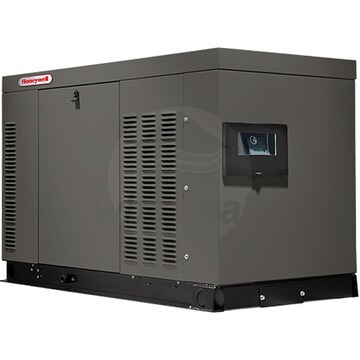

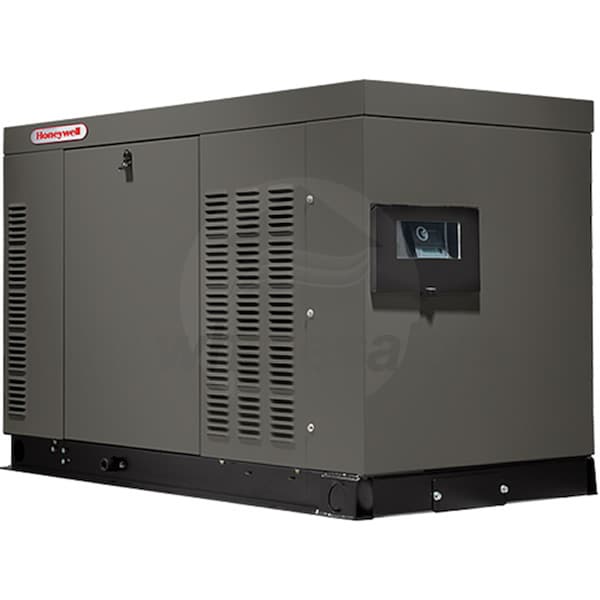

Honeywell™ 32 kW Liquid Cooled Automatic Standby Generator (Premium-Grade) w/ Mobile Link™ (120/240V Single-Phase)

Model: HG03224ANAX Item Number: 62401
Honeywell HG03224ANAX
PREVIOUS
NEXT
Honeywell HG03224ANAX
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Honeywell HG03224ANAX

^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Honeywell™ 32 kW Liquid Cooled Emergency Standby Generator
  • Runs on clean burning Natural Gas or Liquid Propane - Not For Sale In CA/MA
  • Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
  • Powered By Generac's Turbocharged 2.4L Inline 4-Cylinder Liquid Cooled Engine
  • Runs at 1800 RPM, allowing for quieter operation, reduced fuel costs and longevity
  • PrecisionPower™ Electrical Technology - Less Than 5% THD
  • Utility quality power that won't harm electronics & micro-chip based appliances
  • Digital SYNC 1.0™ Generator Controller w/ 2-Line LCD Screen
  • Easily view logs of history, maintenance and events
  • External viewing window for generator status & breaker position
  • State-Of-The-Art Power Maximizing Regulation System
  • Optimized for fast response time to varying loads & +/- 1% Digital Voltage Regulation
  • WhisperCheck™ Self-Test Exercise Mode - Only 58 dB(A)
  • Slower engine speeds during testing, produces less noise and saves fuel
  • Aluminum Enclosure w/ RhinoCoat™ Finish
  • Withstands winds up to 150 mph & provides protection from the elements
  • Requires* Honeywell™ Automatic Transfer Switch (Sold Separately)
  • Provides fully automatic operation & total system compatibility
  • Best-In-Class 5-Year Comprehensive Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    1225 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    76.8 Inches
    Product Width
    35 Inches
    Product Height
    46.1 Inches
    UPC
    696471618860
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    32000 Watts
    Surge Watts
    32000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    32000 Watts
    LP Power Capacity
    32000 Watts
    NG Fuel Consumption @ 50% Load
    226 ft³/hr
    NG Fuel Consumption @ 100% Load
    375 ft³/hr
    LP Fuel Consumption @ 50% Load
    2.7 gallons/hr
    LP Fuel Consumption @ 100% Load
    4.6 gallons/hr
    Rated Amps
    133 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    64 Run (58 Test) dbA
    Transfer Switch
    Automatic (Not Included)
    Battery
    Not Included (525 CCA)
    Enclosure
    Aluminum
    Mounting Pad
    Concrete (Not Included)
    Cooling System
    Liquid Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Yes
    Engine
    Engine Brand
    Generac 2.4L 4-Cylinder
    Starting System
    12v Auto Start
    CC
    2400 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    1800 RPM
    Low Oil Alert/Shutdown
    Yes
    Transfer Switch Circuits
    Circuit Breaker Size
    150 Amps
