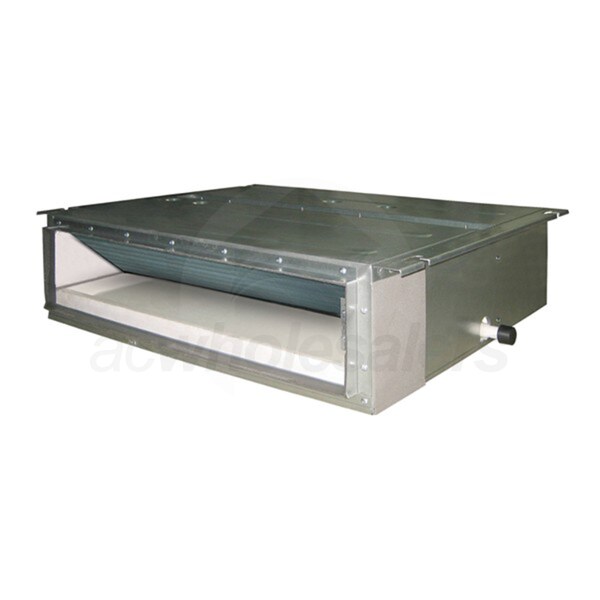

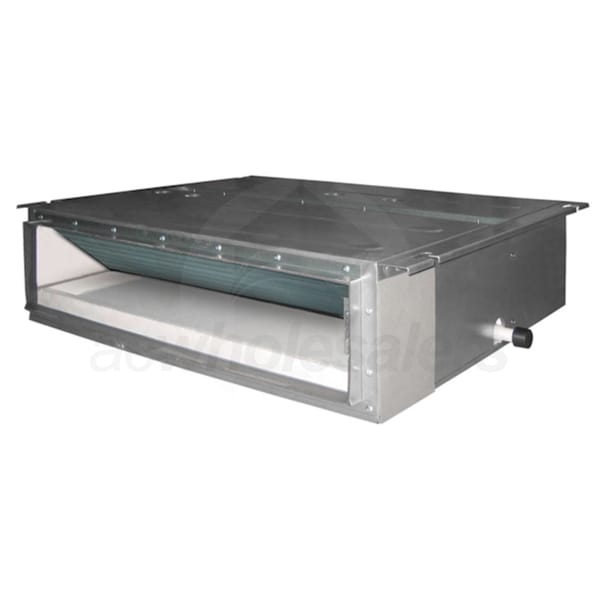

Gree 9,000 BTU Horizontal Ducted Heat Pump Air Handler

Model: DUCT09HP230V1AD Item Number: 50671
Gree DUCT09HP230V1AD
PREVIOUS
NEXT
Gree DUCT09HP230V1AD
Gree DUCT09HP230V1AD
Gree DUCT09HP230V1AD
Enlarge Image
Gree DUCT09HP230V1AD
Gree DUCT09HP230V1AD
Gree DUCT09HP230V1AD
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    48.4 Pounds Learn More
    48.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Air Handler
    Product Line
    DUCT
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Gree DUCT09HP230V1AD

GREE Ductless Multi Zone systems provide quiet comfort and energy efficient heating and cooling in up to five different rooms that are without duct work. For most residential and light commercial applications, this is the ideal solution to balance comfort, efficiency and ease of installation. This Inverter-driven system offers Seasonal Energy Efficiency Ratings (SEER) up to 16. With individual room control and variable speed compressor operation, comfort is boosted throughout your home or office, while utility bills are held in check.
Specifications
View More

Specifications

General Information
Type
Air Handler
Product Line
DUCT
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control

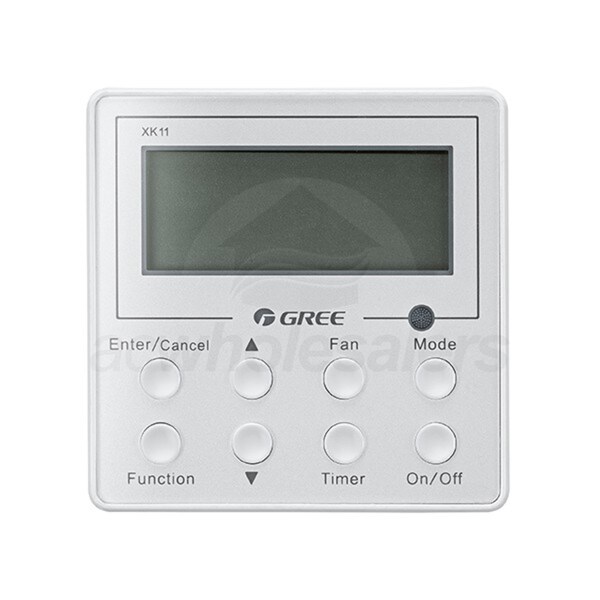

Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
UPC
00813919020102
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
265 CFM
Minimum Air Flow
147 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 43/48 Inches
Product Width
27 29/48 Inches
Product Depth
24 5/24 Inches
Product Weight
48.4 Pounds
Shipping Height
29 Inches
Shipping Width
35 Inches
Shipping Depth
12 Inches
Shipping Weight
69.4 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
