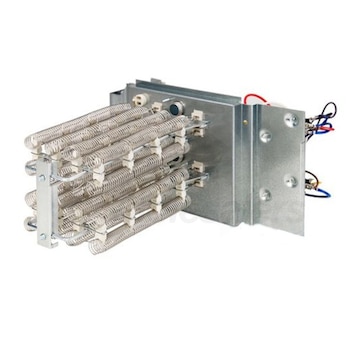

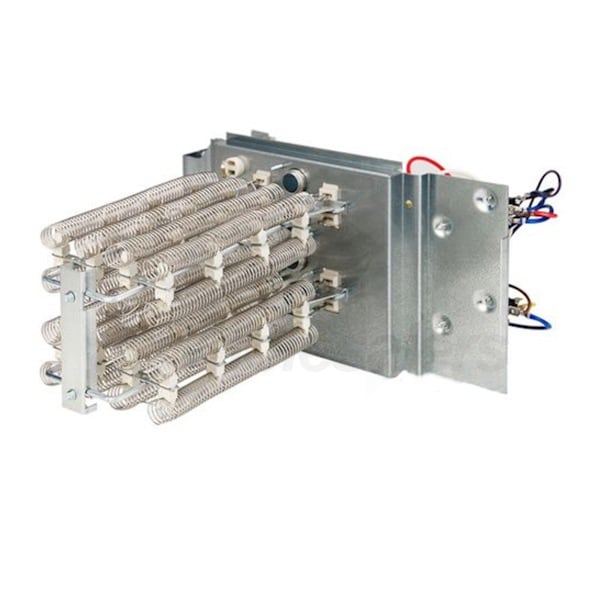

Goodman 20 Kilowatt 68,200 BTU Heater Coil for Smart Frame Air Handler

Model: HKSC20D Item Number: 26460
Goodman HKSC20D
PREVIOUS
NEXT
Goodman HKSC20D
Goodman HKSC20D
Enlarge Image
Goodman HKSC20D
Goodman HKSC20D
Watch Video
Goodman HKSC20D
Watch Video
Goodman HKSC20D
Watch Video
Goodman HKSC20D
View All
Our Price: $241.00
synchrony card icon
$41 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Thursday, February 22nd
Shipping to60601
Goodman 20 Kilowatt 68,200 BTU Heater Coil for Smart Frame Air Handler
Goodman 20 Kilowatt 68,200 BTU Heater Coil for Smart Frame Air Handler Model: HKSC20D Item Number: 26460
$241.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    9 Pounds Learn More
    9 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Forced Air Accessories
    UPC
    663051565456
Heating Capacity (kW)
Select Attribute
Voltage
Select Attribute
Max Cabinet Size
Select Attribute
Features
View More

Features

Overview for Goodman HKSC20D

Overview for Goodman HKSC20D
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
  • Integrated Circuit Breaker
  • The HKSC20DB includes a factory-installed circuit breaker to protect your home's electrical system from damaging short circuits and overloads.
  • Multi-Stage Operation
  • Goodman electric heat kits are compatible with multi-stage heating controls. This makes it easy to ensure your home receives as much, or as little, heat as it needs.
  • Durable Design
  • Goodman uses rust-resistant nickel chromium for the HKS's heat elements, improving the unit's longevity and performance.
  • Product Compatible With
  • Goodman ARPT**D14 Air Handlers
  • Goodman ARUF**D14 Air Handlers
  • Goodman ASPT**D14 Air Handlers
  • Goodman ASUF**D14 Air Handlers
  • Goodman AVPTC**D14 Air Handlers
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Forced Air Accessories
    UPC
    663051565456
    General Information
    Type
    Heat Strip
    Product Line
    HKS
    Product Category
    Forced Air Accessories
    Performance
    Electric Heat Capacity
    19.2 kW
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    83.3 Amps
    Dimensions
    Product Weight
    9 Pounds
    Shipping Height
    16 41/48 Inches
    Shipping Width
    15 11/12 Inches
    Shipping Length
    9 5/24 Inches
    Shipping Weight
    14 Pounds
    Certifications
    ETL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Limited Years
