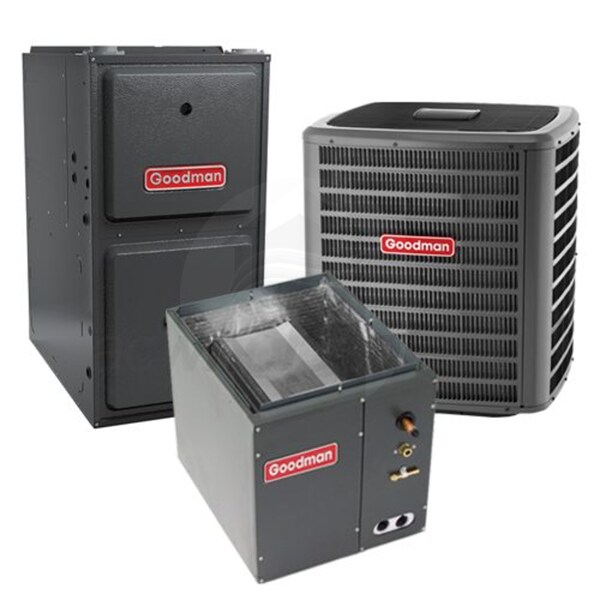

Goodman 3 Ton 16 SEER 96% AFUE Gas Electric Air Conditioner System
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
424 Pounds424 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
(1) Goodman GSXC16 - 3.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160361)
(1) Goodman 4 to 5 Ton 24.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4860D6)
View Full Bundle
+Share This Product
Features & Bundle Details
Features & Bundle Details
Overview for Goodman GSXC16036 CAPF486 GMVC961005
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Bundle Includes 4 items

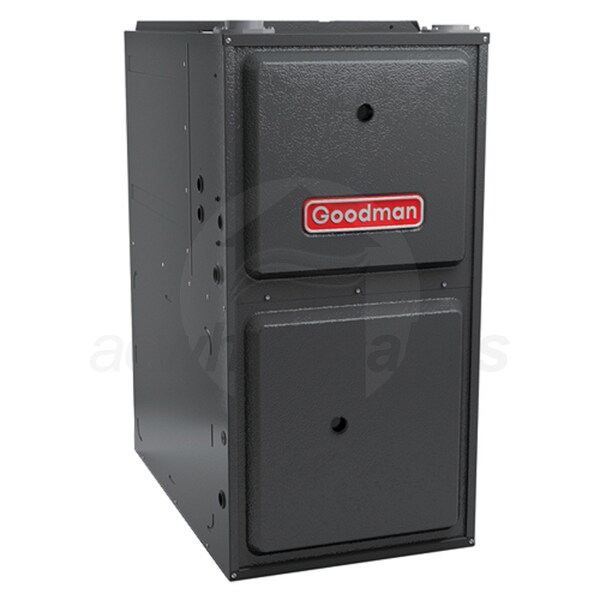

Goodman 96% AFUE 100,000 BTU Variable Speed Upflow Gas Furnace
Model: GMVC961005DN
Item Number: 79617
Quantity: 1

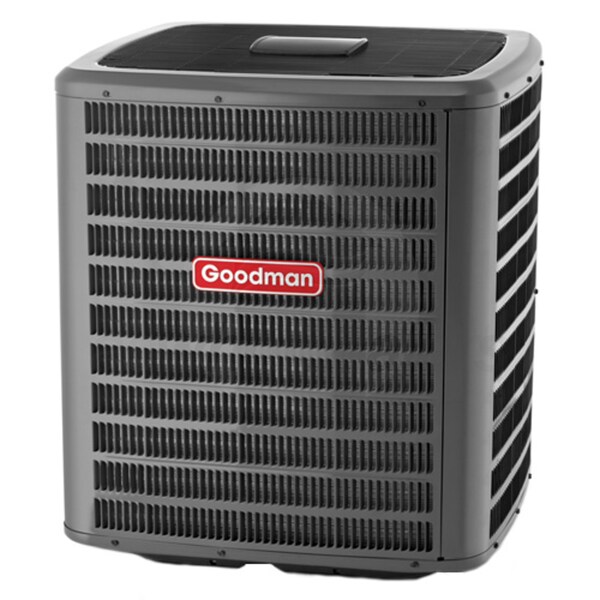

Goodman GSXC16 - 3.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant
Model: GSXC160361
Item Number: 80599
Quantity: 1

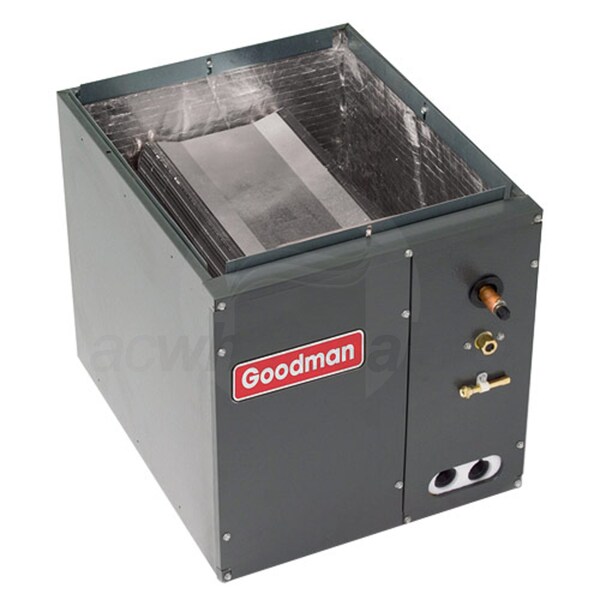

Goodman 4 to 5 Ton 24.5 in. Wide Air Conditioner Evaporator Cased Coil
Model: CAPF4860D6
Item Number: 26373
Quantity: 1

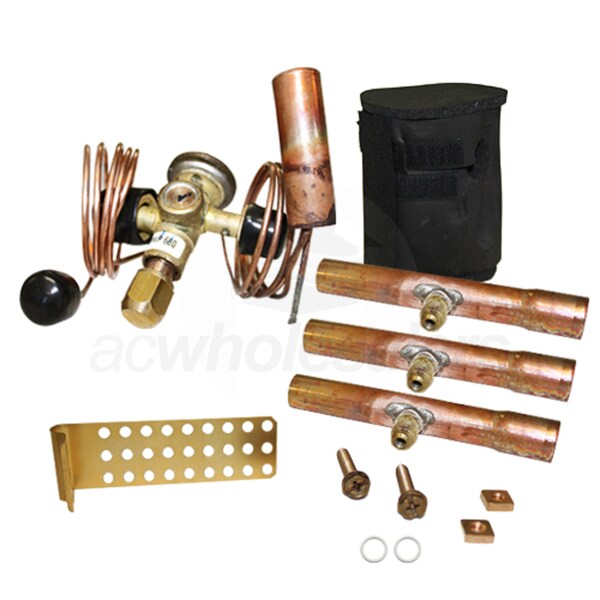

Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant
Model: TX3N4
Item Number: 26403
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
GMVC961005DN Specifications
GSXC160361 Specifications
CAPF4860D6 Specifications
TX3N4 Specifications
General Information
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA, TX and UT)
Performance
AFUE AFUEAFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3 Tons
Cooling Capacity
34400 BTU
Nominal Cooling Capacity
36000 BTU
Heating BTU
100000
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13.0
Maximum Air Flow
1120 CFM
Dimensions
Product Weight
424 Pounds
Shipping Weight
446 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491970
General Information
Type
Gas Furnace
Product Line
GMVC96
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Modulating/StagingStages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE AFUEAFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
96000 BTU
Low Fire Input
70000 BTU
Low Fire Output
67200 BTU
Maximum Air Flow
2000 CFM
Low NOx Emissions Low NOx EmissionsNOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.4 Amps
Recommended Breaker Size
20 Amps
Dimensions
Flue Connection Size
2 Inches
Cabinet Width
24 1/2 Inches
Product Height
34 1/2 Inches
Product Width
24 1/2 Inches
Product Depth
28 7/8 Inches
Product Weight
153 Pounds
Shipping Weight
153 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
10298442
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Compressor StagesStages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 1/2 Inches
Product Width
35 3/4 Inches
Product Depth
35 3/4 Inches
Product Weight
201 Pounds
Shipping Weight
223 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
68 Pounds
Shipping Weight
78 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
