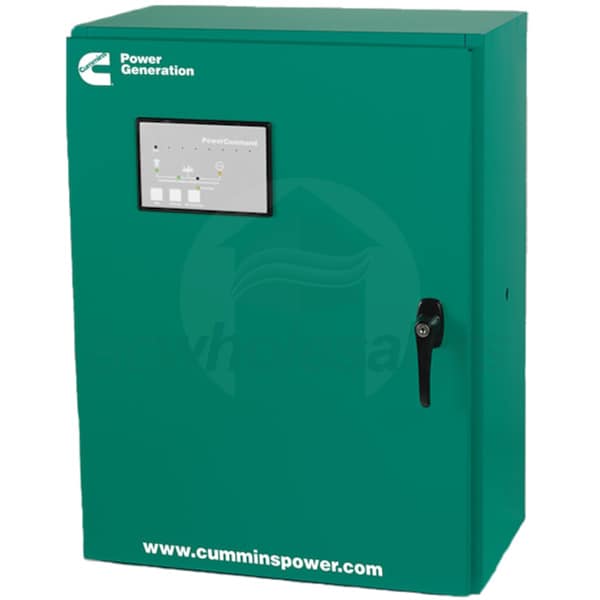

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch

Model: A040C974 Item Number: 11930
Cummins Power Generation A040C974
PREVIOUS
NEXT
Cummins Power Generation A040C974
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    225 Pounds
    Consumer Warranty
    1 Year
    Product Length
    54 Inches
Features
View More

Features

Overview for Cummins Power Generation A040C974

  • 400-Amp Automatic Indoor Transfer Switch
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Integral engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual operation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable
  • Specifications
    View More

    Specifications

    Overview
    Weight
    225 Pounds
    Consumer Warranty
    1 Year
    Product Length
    54 Inches
    Product Width
    25.5 Inches
    Product Height
    18 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    96000 Watts
    Rated Amps
    400 Amps
    Enclosure
    NEMA 1R
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Not Compatible
    ATS Load Shedding
    Not Compatible
    ATS Poles
    3 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    400 Amps
    Max Generator Input
    400 Amps
    Maximum Wattage
    96000 Watts
    UL Listed
    Yes
