Crown Boiler Co. 86% AFUE 92k BTU Steam Oil Boiler Chimney Vent

Model: FSZ100BOLZ1SSU Item Number: 47489
Ask a Question
Crown Boiler Co. FSZ100BOLZ1SSU
PREVIOUS
NEXT
Crown Boiler Co. FSZ100BOLZ1SSU
Enlarge Image
Our Price: $3,796.00
$67 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 2-5 Business Days
Crown Boiler Co. 86% AFUE 92k BTU Steam Oil Boiler Chimney Vent
Crown Boiler Co. 86% AFUE 92k BTU Steam Oil Boiler Chimney Vent Model: FSZ100BOLZ1SSU Item Number: 47489
$3,796.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    607 Pounds Learn More
    Product Line
    Freeport
    Medium
    Steam
View More
Tankless Coil
Learn More
Select Attribute
Features
View More

Features

Overview for Crown Boiler Co. FSZ100BOLZ1SSU

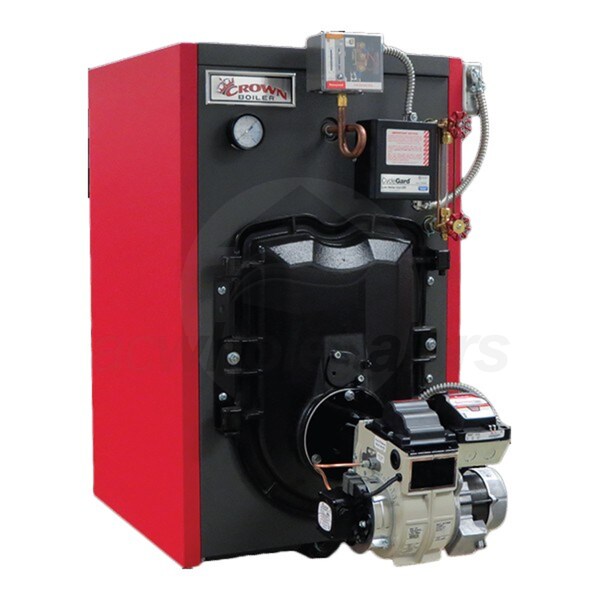

The Crown Freeport boiler is an oil fired boiler designed from the ground up to maximize efficiency. At its core is a three-pass cast iron heat exchanger - the flue gases are circulated through three separate heat exchange passages to maximize heat transfer to the water. A front side swinging burner door provides easy access to all heating surfaces, making routine maintenance an easy task.
  • Product Features
  • Cast Iron Heat Exchanger
  • Power Coated Steel Jacket
  • Swing Door with Burner Disconnect plug
  • Hydrolevel CG450 probe low water cutoff
  • Fast Heating
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    Freeport
    Medium Learn More
    Steam
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Oil
    Combustion Type Learn More
    Conventional
    Vent Type Learn More
    Chimney Vent
    DHW Production Learn More
    No
    Modulating/Staging Learn More
    Single Stage
    Mount Type
    Floor
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Burner Model
    Beckett AFG
    Performance
    AFUE Learn More
    86 %
    Input Rate
    1.0 GPH
    DOE Heating Capacity Learn More
    122000 BTU
    Net I=B=R Capacity Learn More
    92000 BTU
    Maximum Fluid Temperature
    190 F
    Maximum Operating Pressure
    15 PSI
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Fluid Content
    14.9 Gallons
    Flue Connection Size
    6 Inches
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    38 1/2 Inches
    Product Width
    22 1/4 Inches
    Product Depth
    22 1/2 Inches
    Product Weight
    607 Pounds
    Certifications
    Country of Origin
    United States
    AHRI Certified
    Yes
    AHRI Reference Number
    5610459
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    1 Year
    Heat Exchanger Warranty
    12 Years
