Crown Boiler Co. 78% AFUE 221k BTU Thermal Efficiency Steam NG Boiler

Model: BSI380ENPZZPSU Item Number: 24044
Ask a Question

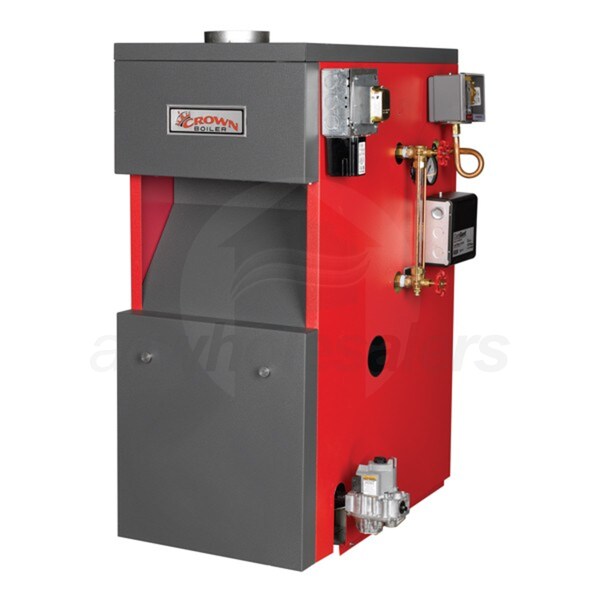

Crown Boiler Co. BSI380ENPZZPSU
PREVIOUS
NEXT
Crown Boiler Co. BSI380ENPZZPSU
Enlarge Image
Our Price: $4,958.00
synchrony card icon
$62 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 2-5 Business Days
Crown Boiler Co. 78% AFUE 221k BTU Thermal Efficiency Steam NG Boiler
Crown Boiler Co. 78% AFUE 221k BTU Thermal Efficiency Steam NG Boiler Model: BSI380ENPZZPSU Item Number: 24044
$4,958.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Product Line
    Bermuda
    Medium
    Steam
    Heat Exchanger Material
    Cast Iron
View More
Net IBR Capacity (BTU/Hr)
Select Attribute
Fuel Type
Learn More
Select Attribute
Altitude Type
Select Attribute
Features
View More

Features

Overview for Crown Boiler Co. BSI380ENPZZPSU

The Bermuda boiler from Crown is a steam boiler designed to be installed in a wide variety of locations. At its core is a cast iron heat exchanger, a material that ensures maximum heat transfer from your fuel source to the steam itself while holding up to years of use. An automatic vent damper is included, regulating the flow of flue exhaust to your home's chimney, and a built-in draft diverter allows the boiler to fit into low-clearance spaces. As long at it isn't carpeting, the Bermuda can be installed on combustible flooring without an issue. An attractive, rugged jacket tops off the Bermuda's feature list, making it an excellent addition to any home that requires a steam boiler.
  • Product Features
  • Cast Iron Heat Exchanger
  • Stainless Steel Burners
  • Built-In Draft Diverter
  • Attractive Rugged Jacket
  • Available Fully Assembled or Knock-Down Package
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    Bermuda
    Medium Learn More
    Steam
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Natural Gas
    Combustion Type Learn More
    Conventional
    Vent Type Learn More
    Chimney Vent
    DHW Production Learn More
    No
    Modulating/Staging Learn More
    Single Stage
    Mount Type
    Floor
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    No
    Assembly Type
    Packaged
    Performance
    Maximum Input Capacity Learn More
    379000 BTU
    DOE Heating Capacity Learn More
    294000 BTU
    Net I=B=R Capacity Learn More
    221000 BTU
    Efficiency Type
    Thermal Efficiency
    Efficiency
    77.5 %
    Ultra Low NOx Emissions Learn More
    No
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    9 Inches
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    45 7/16 Inches
    Product Width
    42 Inches
    Product Depth
    30 Inches
    Shipping Weight
    1125 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    5433299
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    1 Year
    Heat Exchanger Warranty
    12 Years
