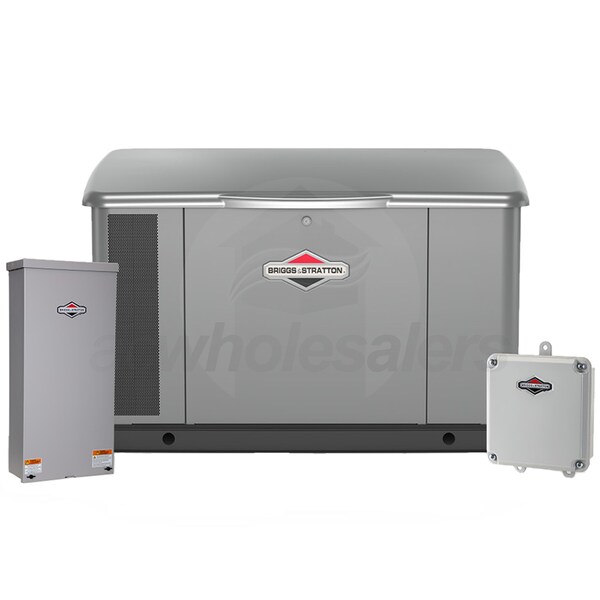

Briggs & Stratton 20kW Standby Generator System w/ Wi-Fi (Steel) (200A Service Disc. + Amplify™ Power Mgmt.)

Model: 40621 Item Number: 102549
Briggs & Stratton 40621
PREVIOUS
NEXT
Briggs & Stratton 40621
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    489 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
Features
View More

Features

Overview for Briggs & Stratton 40621

  • B&S 20kW (LP) / 18kW (NG) Air-Cooled Standby Generator System
  • Automatically powers your home in seconds after sensing an outage
  • 5 Year Limited Best in Class Warranty
  • Covers parts, labor, and travel for 5-Years - No Hidden Fees
  • Amplify™ Power Management
  • Prioritize the power needs of your home
  • Amplify™ Standby Generator Management App
  • Set and change priorities of high wattage appliances*
  • Monitor your generators status all from the touch of button
  • *Requires modules (Sold Separately)
  • 200-Amp Service Entrance Rated Automatic Transfer Switch
  • Power all circuits without a sub-panel
  • NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
  • Runs on Natural Gas (NG) or Liquid Propane (LP)
  • Simple field conversion for easier installations
  • 993cc Commercial-Grade Vanguard® Air-Cooled Engine
  • Full-pressure lubrication system w/ spin-on oil filter
  • Advanced debris management for enhanced durability
  • Briggs & Stratton Alternator - Less Than 5% THD
  • Improved frequency (HZ) regulation for cleaner power
  • Automatic Voltage Regulation (+/-1%)
  • Helps prevent damaging voltage spikes
  • New Upgraded Control System
  • LCD display w/ multi-line text graphics
  • Low Idle mode for quieter exercise
  • InfoHub™ Wi-Fi Wireless Monitoring
  • Remotely monitor your generator from your computer or smartphone
  • Subscription sold separately
  • Independent 3-Stage Battery Charger
  • Provides optimized charge for longer battery life
  • Automotive-Grade Galvaneal Steel Enclosure
  • Helps minimize corrosion & protects it from the elements
  • Assembled & Engineered In The USA
  • From foreign and domestic parts
  • Requires Battery (Sold Separately)
  • Specifications
    View More

    Specifications

    Overview
    Weight
    489 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    50.5 Inches
    Product Width
    33.8 Inches
    Product Height
    30.6 Inches
    UPC
    011675406219
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Auto Voltage Regulation
    Yes
    Rated Watts
    20000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    18000 Watts
    LP Power Capacity
    20000 Watts
    NG Fuel Consumption @ 50% Load
    187 ft³/hr
    NG Fuel Consumption @ 100% Load
    260 ft³/hr
    LP Fuel Consumption @ 50% Load
    2.24 gallons/hr
    LP Fuel Consumption @ 100% Load
    3.65 gallons/hr
    Rated Amps
    83.6 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    64
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    200-Amps
    Battery
    Not Included (540 CCA)
    Enclosure
    Steel
    Circuit Breaker Size
    100 Amps
    A/C Ton Rating
    2 x 5-Tons
    Mounting Pad
    Steel (Included)
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Sold Separately
    ATS Load Shedding
    Built-In
    ATS Service Disconnect
    Yes
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Yes
    Engine
    Engine Brand
    Briggs and Stratton Vanguard
    Starting System
    12v Auto Start
    CC
    993 CC
    Consumer Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
