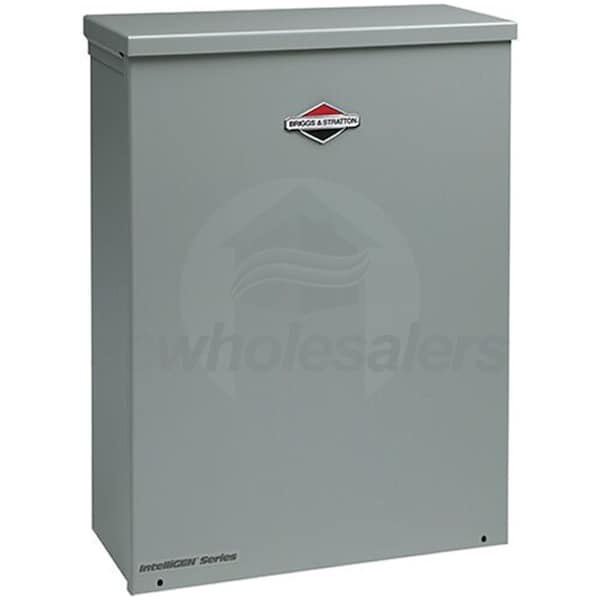

Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding

Model: 071212 Item Number: 102421
Briggs & Stratton 071212
PREVIOUS
NEXT
Briggs & Stratton 071212
Enlarge Image
Our Price: $713.00
Factory-Direct
Ships in 2-5 Business Days
Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding
Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding Model: 071212 Item Number: 102421
$713.00
Factory-Direct
-
+
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Features
View More

Features

Overview for Briggs & Stratton 071212

*Note - Not Compatible w/ Generators Made Prior To 2019
  • Maximum Safety, Comfort and Efficiency
  • Compatible with 12-20kW Intelligen Standby Generator
  • Rated at 100-Amps @ 240V
  • 16-Circuit Design (Breakers Not Included)
  • Allows you to select your priority circuits
  • Manage up to 2 AC units
  • AC Power Control Module (ACCM)
  • Imprints starting wattage of your AC in the control board
  • Monitors usage/watts until your AC can be started
  • Assures usage while preventing overload
  • Built-In AC Delay For AC Start-up
  • Allows for pressure to bleed off AC motor
  • Makes start-up less power intensive
  • Nema 3R Enclosure
  • Flexibility in mounting locations - indoor or outdoor
  • UL1008 Listed
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    37 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Length
    24 Inches
    Product Width
    14 Inches
    Product Height
    6 Inches
    UPC
    011675712129
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Amps
    100 Amps
    Enclosure
    NEMA 3R
    Number of Circuit Breakers
    16
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Service Disconnect
    No
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    Maximum Wattage
    24000 Watts
    UL Listed
    Yes
