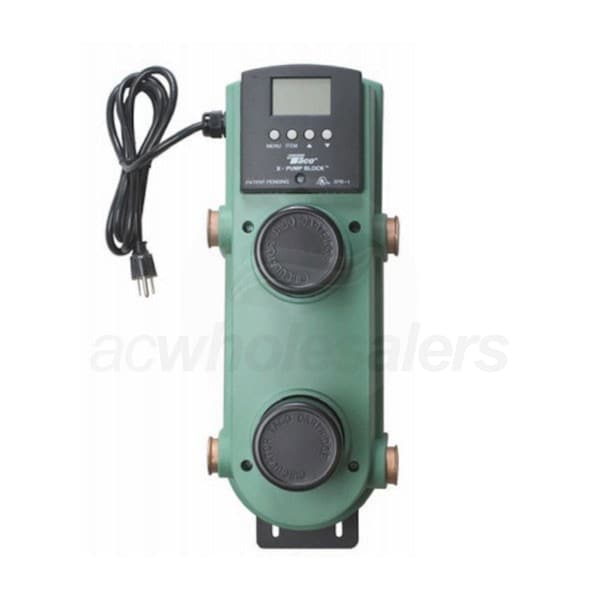

Taco 7.5 GPM 3/4" FNPT X-Pump Mixing Block w/ 15.5 Feet Head Range

Model: XPB-1 Item Number: 33742
Taco XPB-1
PREVIOUS
NEXT
Taco XPB-1
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Line
    X-Pump
    Connection Type
    FNPT
    UPC
    687752414172
Features
View More

Features

Overview for Taco XPB-1

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. Taco's XPB-1 is a marvel of radiant heating versatility. The X-Pump Block combines a variable speed circulator and a single stage system circulator into a single piece of equipment capable of handling up to 50,000 BTU's of radiant heating transfer. It also includes a heat exchanger for system isolation and a streamlined control panel for all processes. The variable speed circulator injects water into the heat exchanger to achieve the perfect temperature without wasting any heat while the other circulator handles system water flow. If you're looking for amazing radiant efficiency, it begins with an XPB-1. The variable speed circulator supports either outdoor reset control or setpoint control. If you opt for setpoint the option of adding a delta-T limit is available, for preserving a fixed temperature drop. The large LCD display on the control makes it easy to set your XPB and check system temperatures. The bronze construction of the X-Pump Mixing Block makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Replaceable Cartridge Design
  • All of the circulators' moving parts are contained within a removable cartridge. Servicing a X-Pump Block's pumps is as easy as replacing these cartridges.
  • Advanced Heat Exchanger Design
  • The XPB-1 uses a counter-flow style, brazed plate heat exchanger. These heat exchangers are known for exceptional heat transfer qualities, compact size, and corrosion resistance.
  • Quick Installation
  • Getting an XPB-1 into your radiant system is a painless process; It requires only four piping connections. Wiring is equally easy with the included line cord and quick, plug-in low voltage connections.
  • System Protections
  • With an included heat sensor, the XPB-1 protects your heat source from thermal shock and condensation damage by limiting the amount of cool water return. In outdoor reset mode, the XPB can provide a warm weather shutdown temperature to limit system wear.
  • Typical Product Applications
  • Radiant Manifolds
  • Radiant with Multiple Zone Circulators
  • Radiant with Multiple Zone Valves
  • Radiant with Multiple Temperatures
  • Snow Melt Systems
  • Product Includes
  • (1) Taco XPB-1 X-Pump Mixing Block
  • (1) Outdoor Sensor
  • (2) Strap-On Sensors
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    X-Pump
    Connection Type
    FNPT
    UPC
    687752414172
    Performance
    Maximum Head
    15.5 Feet
    Maximum Flow Rate
    7.5 GPM
    Maximum Fluid Temperature
    185 F
    Horsepower
    0.04
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    2 Amps
    Dimensions
    Connection Size
    3/4 Inch
    Product Height
    18 3/8 Inches
    Product Width
    6 3/4 Inches
    Product Depth
    9 5/8 Inches
    Shipping Weight
    26.5 Pounds
    Certifications
    UL Listed
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
