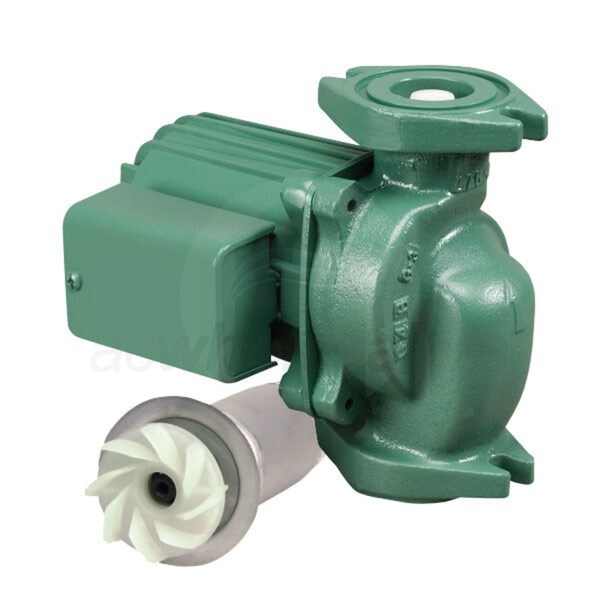

Taco 1/8 HP 2" Flange Cast Iron Cartridge Circulator

Model: 0012-F4-1 Item Number: 32942
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Taco 0012-F4-1
PREVIOUS
NEXT
Taco 0012-F4-1
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    13 Pounds Learn More
    13 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Circulator
    Product Line
    0012 Series
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Taco 0012-F4-1

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. If you want a versatile circulator that can handle medium head applications while maintaining a high flow, you want the Taco 0012-F. With the highest flow rate in the 00-F line, this pump is perfect for a variety of light commercial applications. It's also more than capable of handling large scale residential circulation. The universal flange-to-flange dimension of the 0012-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal. In low temperature applications, protection from corrosion is provided by an anti-condensate baffle.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Hydronic Heating
  • Radiant Heating
  • Chilled Water Cooling
  • Large BTU Boilers
  • 2" Recirculation Loops
  • Primary/Secondary Loops
  • Commercial Water Heaters
  • Product Includes
  • (1) Taco 0012-F4-1 Circulator Pump
  • (2) 2" Flanges
    • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    General Information
    Type
    Circulator
    Product Line
    0012 Series
    Motor Type
    Single Speed
    Connection Type
    Flanged
    Material
    Cast Iron
    Flange Orientation
    Standard
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    No
    UPC
    687752190649
    Performance
    Maximum Head
    14.5 Feet
    Maximum Flow Rate
    52 GPM
    Maximum Fluid Temperature
    230 F
    Horsepower
    1/8 HP
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    1.33 Amps
    Dimensions
    Product Height
    8 1/2 Inches
    Product Width
    5 1/2 Inches
    Product Depth
    9 Inches
    Product Weight
    13 Pounds
    Shipping Weight
    14 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
