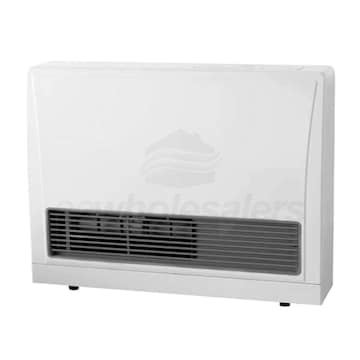

Rinnai EnergySaver 20,700 BTU DV Wall Furnace LP 81% AFUE White

Model: EX22CTWP Item Number: 80251
Ask a Question
Rinnai EX22CTWP
PREVIOUS
NEXT
Rinnai EX22CTWP
Watch Video
Enlarge Image
Rinnai EX22CTWP
Rinnai EX22CTWP
Watch Video
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    57 Pounds Learn More
    57 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Wall Furnace
    Product Line
    EnergySaver
View More
Nominal Heating Capacity (BTU/Hr)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Color
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Rinnai EX22CTWP

With the Rinnai EnergySaver® Direct Vent Wall Furnace, you can be just as comfortable with your energy bill as you are with your room temperature. The EnergySaver® is a highly efficient furnace ideal for hard to heat areas like sunrooms, basements, room additions, and even whole-home heating. The EnergySaver® features Rinnai's modulating heat technology that responds to small temperature changes, resulting in higher levels of comfort at lower energy cost. The EnergySaver® also includes a user-friendly control panel that allows you to set temperature and adjust heating schedules with a programmable timer. The Rinnai EnergySaver® Wall Furnace puts you in control of your home's comfort, effectively and efficiently.
Specifications
View More

Specifications

General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX22
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Modulating
Blower Motor
ECM Variable-Speed
Gas Conversion Kit
Available
Color
White
UPC
766156009907
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
81 %
Heating BTU
20700
High Fire Input
20700 BTU
High Fire Output
16560 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Supply Connection
1/2 Inch
Product Height
22 43/48 Inches
Product Width
29 43/48 Inches
Product Depth
10 5/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
10061799
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
