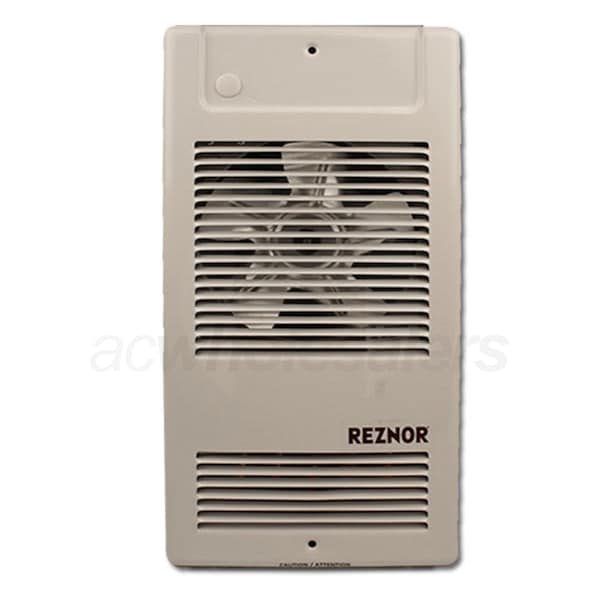

Reznor 5,122 BTU 1.5 kW Wall Mount Electric Heater 120V 1 Phase

Model: EHL-1500-AK1E Item Number: 46188
Reznor EHL-1500-AK1E
PREVIOUS
NEXT
Reznor EHL-1500-AK1E
Reznor EHL-1500-AK1E
Reznor EHL-1500-AK1E
Enlarge Image
Reznor EHL-1500-AK1E
Reznor EHL-1500-AK1E
Reznor EHL-1500-AK1E
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    9 Pounds Learn More
    9 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Standard
    Product Line
    EHL
Features
View More

Features

Overview for Reznor EHL-1500-AK1E

Overview for Reznor EHL-1500-AK1E

Reznor EHL-1500-AK1E 5,122 BTU 1.5 kW Wall Mount Electric Heater 120V 1 Phase.
  • Reznor EHL-1500-AK1E Features
  • 20 gauge steel cabinet
  • 22 gauge steel front cover
  • High-limit temperature control with automatic reset

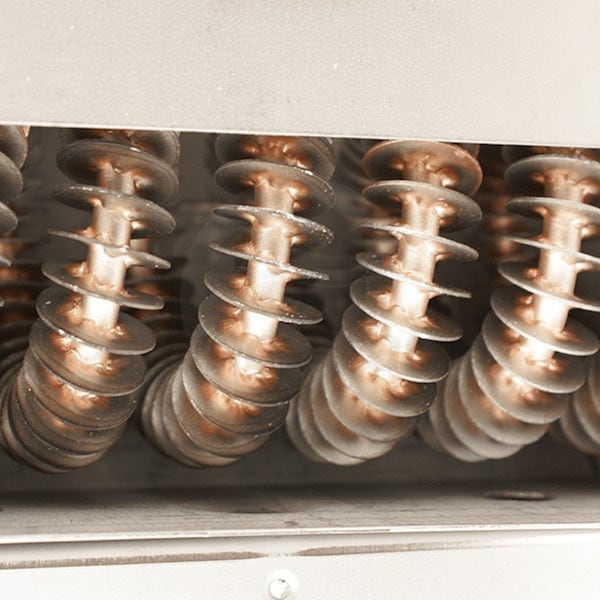

  • Tubular heating elements with fins
  • Rounded corners
  • Epoxy/polyester powder paint
  • Specifications
    View More

    Specifications

    General Information
    Type
    Standard
    Product Line
    EHL
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Wall
    Performance
    Heating Capacity
    5122 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    5122 BTU
    Heating Capacity (kW)
    1.5 kW
    Maximum Air Flow
    80 CFM
    Minimum Air Flow
    80 CFM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Current Draw
    12.5 Amps
    Dimensions
    Product Height
    16 Inches
    Product Width
    8 2/12 Inches
    Product Depth
    3 Inches
    Product Weight
    9 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
