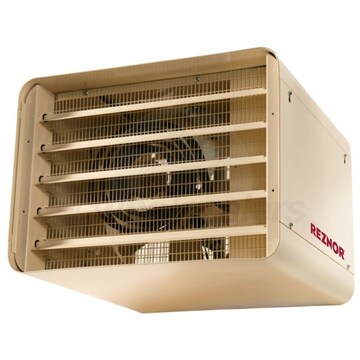

Reznor 85,360 BTU 25 kW Suspended Electric Heater 208V 3 Phase

Model: EGHB-25-AK5 Item Number: 46130
Ask a Question
Reznor EGHB-25-AK5
PREVIOUS
NEXT
Reznor EGHB-25-AK5
Enlarge Image
Our Price: $2,112.57
$353 / Month
Suggested monthly payments with 6 month financing.
Ships in 3-4 Weeks
Reznor 85,360 BTU 25 kW Suspended Electric Heater 208V 3 Phase
Reznor 85,360 BTU 25 kW Suspended Electric Heater 208V 3 Phase Model: EGHB-25-AK5 Item Number: 46130
$2,112.57
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    85 Pounds Learn More
    85 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Heavy Duty
    Product Line
    EGHB
View More
Voltage/Phase
Select Attribute
Features
View More

Features

Overview for Reznor EGHB-25-AK5

Overview for Reznor EGHB-25-AK5

Reznor EGHB-25-AK5 85,360 BTU 25 kW Suspended Electric Heater 208V 3 Phase.
Product Note
Reznor EGHB Series is not designed for residential use.
Specifications
View More

Specifications

General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
85360 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
85360 BTU
Heating Capacity (kW)
25 kW
Maximum Air Flow
1300 CFM
Minimum Air Flow
1300 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Current Draw
69.47 Amps
Dimensions
Product Height
17 1/2 Inches
Product Width
22 Inches
Product Depth
22 1/2 Inches
Product Weight
85 Pounds
Shipping Weight
95 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
