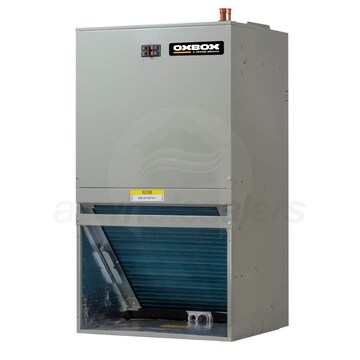

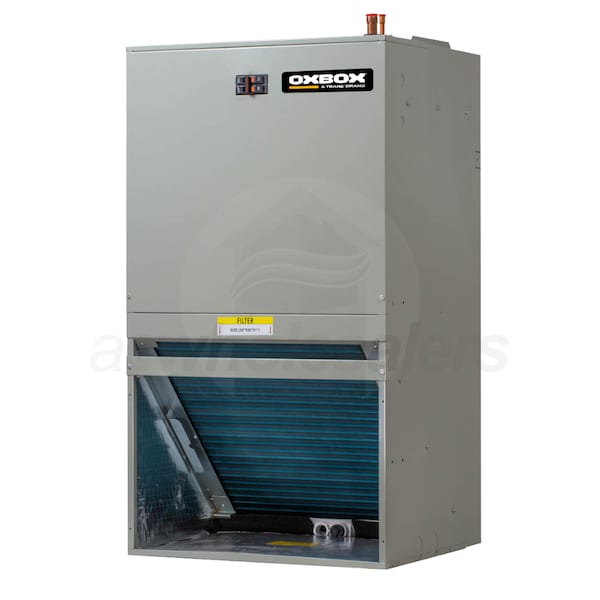

Oxbox 2.5 Ton Air Conditioner Wall Mount Air Handler

Model: JMM4A0B30S21SAA Item Number: 110395
Oxbox JMM4A0B30S21SAA
PREVIOUS
NEXT
Oxbox JMM4A0B30S21SAA
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    106 Pounds Learn More
    106 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Oxbox JMM4A0B30S21SAA

The Oxbox wall mount air handler is designed to supplement your air conditioner or heat pump by circulating cooled or heated air throughout your home. The air handler's compact size allows it to be wall mounted in a small closet or attic. An all-aluminum coil provides efficient heat transfer while its factory installed refrigerant control device keeps the unit running efficiently over the years.

Wall Mounted

The Oxbox wall mount air handler's compact size allows for installation in a small closet or open attic.

All-aluminum Coil

The Oxbox wall mount air handler includes an all-aluminum coil for advanced heat transfer and efficiency.

Painted Metal Cabinet

The wall mount air handler features a painted metal cabinet for durability and foil face insulation to ensure efficiency.

Built-in Filter Rack

A built-in filter rack is included with the wall mount air handler for added convenience.


  • Wall Mounted
  • The Oxbox wall mount air handler's compact size allows for installation in a small closet or open attic.
  • All-aluminum Coil
  • The Oxbox wall mount air handler includes an all-aluminum coil for advanced heat transfer and efficiency.
  • Painted Metal Cabinet
  • The wall mount air handler features a painted metal cabinet for durability and foil face insulation to ensure efficiency.
  • Built-in Filter Rack
  • A built-in filter rack is included with the wall mount air handler for added convenience.
  • Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    General Information
    Type
    Air Handler
    Product Line
    JMM4
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    PSC
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow
    Installation Location
    Indoor
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling BTU
    30000
    Maximum Air Flow
    992 CFM
    Minimum Air Flow
    627 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    1.6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    39 1/2 Inches
    Product Width
    22 Inches
    Product Depth
    19 Inches
    Product Weight
    106 Pounds
    Shipping Height
    42 9/16 Inches
    Shipping Width
    21 7/24 Inches
    Shipping Length
    24 1/4 Inches
    Shipping Weight
    119 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Unit Replacement Warranty
    1 Year
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
