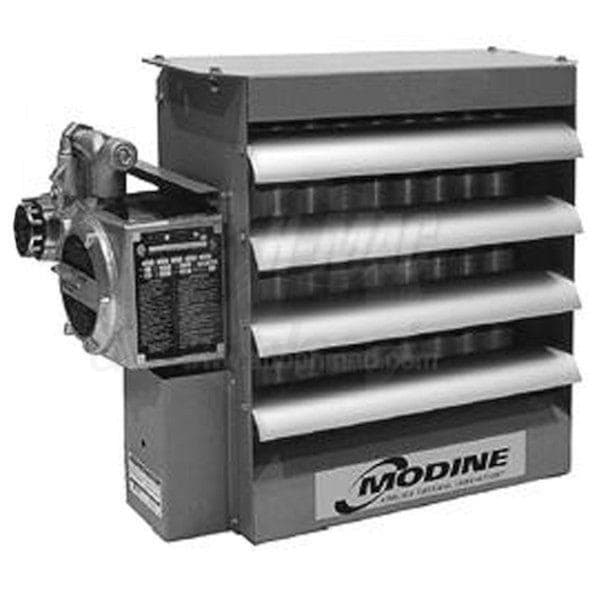

Modine HEX5 3 kW Electric Unit Heater for Hazardous Locations 208V/60Hz/3 Phase Horizontal Orientation

Model: HEX5-208360-030 Item Number: 48386
Modine HEX5-208360-030
PREVIOUS
NEXT
Modine HEX5-208360-030
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Explosion Resistant
    Product Line
    HEX5
    Fuel Type
    Electric
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine HEX5-208360-030

Modine's HEX5-30 hazardous environment unit heater is designed for rugged industrial applications in unforgiving, dirty environments. From pulp and paper mills and agricultural plants to oil refineries and coal mines, the HEX5-30 has the durability needed to withstand the most punishing of conditions. This unit heater comes equipped with the necessary features to prevent fires and explosions from flammable gases, vapors, or powdered metals that may exist around the heater.

Product Features

14 Gauge Steel Cabinet
The outer shell of the HEX5-30 uses epoxy coated 14 gauge steel. The coated steel is highly effective at protecting the sensitive internal components from a hazardous surrounding environment.

Temperature Change Resistant
The unit heater uses an ethylene glycol and water solution as a heat transfer medium, providing freeze protection down to a level of -49 degrees Fahrenheit. An included pressure relief valve protects against overpressure damage.

Teflon-Lined Heating Element Tank
A liquid filled tank on the lower part of the HEX5-30 protects the electric heating elements from outside hazards. This tank is lined with Teflon, simultaneously protecting the heating elements and keeping them away from the sides of the tank.

High Current Wiring
The wiring on the HEX5-30 consists of high current, industrial grade wiring attached to tin plated copper bus bars, giving the unit heater the ability to handle high current with ease.

NEMA Type 7 and 9 Wiring Housing
The rugged NEMA type control box houses a large aluminum data plate, control transformer, and convenient terminals for the wiring of accessories to the unit heater.

Heavy Gauge Embossed Fan Blades
The HEX5-30 uses heavy gauge embossed steel for its fan blades, providing superior corrosion resistance while being durable enough to last for years.

Product Note

HEX5 hazardous environment unit heaters are offered with a number of factory installed options. These options include:

  • Factory Installed Disconnect Switch
  • Factory Installed 3-Way Switch - On/Off/Fan Only
  • Factory Installed Pilot Light - Indicates Heat On
  • Factory Installed Thermostat
  • Please call our sales department at (866) 554-HEAT (4328) for availability and pricing information.

  • Product Features
  • Liquid to air finned tube heat exchanger core
  • Thermally protected, automatic reset explosion-proof motor
  • Pressure relief valve handles over-pressure
  • Narrow gap two-piece safety fan guard
  • Adjustable extruded aluminum louvers
  • Copper conductor wires enclosed in steel conduits
  • Specifications
    View More

    Specifications

    General Information
    Type
    Explosion Resistant
    Product Line
    HEX5
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Suspended
    Performance
    Heating Capacity
    10250 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    10250 BTU
    Heating Capacity (kW)
    3 kW
    Air Throw
    15 Feet
    Maximum Air Flow
    500 CFM
    Electrical Data
    Voltage
    208 Volts
    Phase
    3
    Frequency
    60 Hz
    Dimensions
    Product Height
    18 1/2 Inches
    Product Width
    24 5/8 Inches
    Product Depth
    24 5/8 Inches
    Shipping Weight
    151 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
