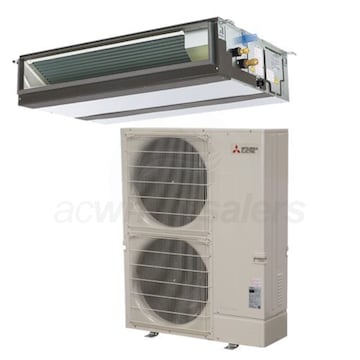

Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 19.1 SEER

Model: PUY-A36NKA7 PEAD-A36AA7 Item Number: 88215
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
PREVIOUS
NEXT
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Enlarge Image
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
Mitsubishi PUY-A36NKA7 PEAD-A36AA7
View All
Originally $6,149.25, you save 3%
Our Price: $5,951.25
synchrony card icon
$75 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Only 1 In-Stock
Ships Monday, October 14th
Shipping to60601
Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 19.1 SEER
Mitsubishi - 36k BTU Cooling Only - P-Series Concealed Duct Air Conditioning System - 19.1 SEER Model: PUY-A36NKA7 PEAD-A36AA7 Item Number: 88215
$5,951.25
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    272 Pounds Learn More
    272 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Cooling Only System
Bundle Includes 2 items
  • product image
    (1) Mitsubishi - 36k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A36NKA7)
  • product image
    (1) Mitsubishi 35,000 BTU Ducted Mini Split Air Conditioner Air Handler (PEAD-A36AA7)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi PUY-A36NKA7 PEAD-A36AA7

Overview for the Mitsubishi Ducted PUY-A36NKA7 PEAD-A36AA7 Air Conditioning System

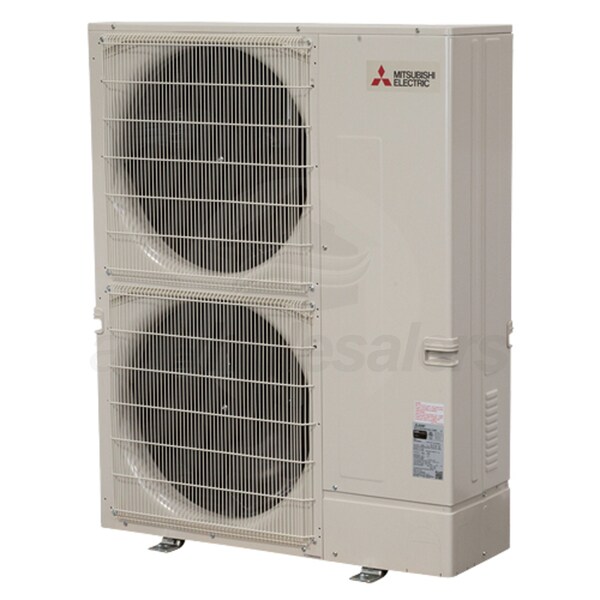

Overview for the Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser
This Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.

But why purchase the Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.

The Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser has Ductless Inverter technology.
Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUY-A36NKA7 Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.

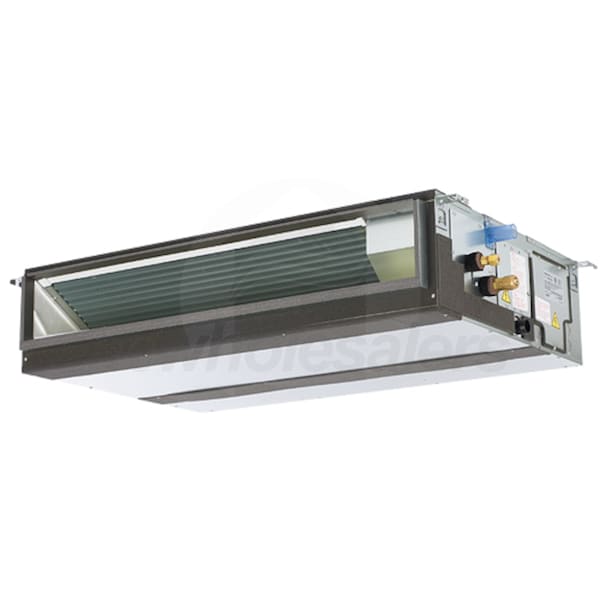

Overview for the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler
Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler utilizes short duct runs, allowing for the conditioning of adjacent spaces or extending the range of distributed capacities within a single zone with very little visual impact to the conditioned area. With features like a built-in condensate lift mechanism, adjustable static pressure, multiple fan speeds, DRY Mode, and an operating sound as low as 23 dB(A), the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler expands the number of application possibilities. The Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference ballrooms, fitness centers, and more.

Are there different type of Mitsubishi P-Series Ductless Air Conditioners?
Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Ducted equipment which is PCA Series or if you're looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.

The Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is a versatile piece of Ductless technology.
Similar to the Mitsubishi Ductless Mini Split M-Series units the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler fills larger spaces with substantial cooling from a compact, ducted package. Walk into any room where a Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is installed, and all you'll notice is the perfectly comfortable climate. What you may not notice is the unit itself, for it mounts unobtrusive and concealed design for use with short-run duct work.
  • Precision Temperature Control Technology
  • The PUY-A36NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The PEAD-A36AA contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Cooling Only System
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split Cooling Only System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    19.1
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    Cooling Power Input
    3330 Watts
    Minimum Outdoor Temperature for Cooling
    23 F
    Dimensions
    Product Weight
    272 Pounds
    Shipping Weight
    305 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201754541
    General Information
    Type
    Outdoor Condenser
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    31 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    225 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 3/4 Inches
    Product Width
    41 5/24 Inches
    Product Depth
    14 Inches
    Product Weight
    211 Pounds
    Shipping Weight
    243 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Motor Type
    Variable-Speed
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Air Flow
    1201 CFM
    Minimum Air Flow
    847 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    3.3 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 7/8 Inches
    Product Width
    55 1/8 Inches
    Product Depth
    28 7/8 Inches
    Product Weight
    101 Pounds
    Shipping Weight
    101 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
