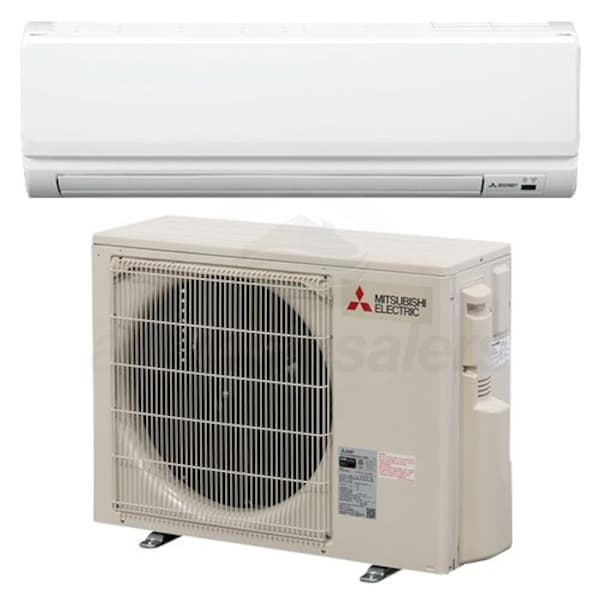

Mitsubishi - 12k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 20.8 SEER

Model: PUY-A12NKA7 PKA-A12HA7 Item Number: 88217
Mitsubishi PUY-A12NKA7 PKA-A12HA7
PREVIOUS
NEXT
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Enlarge Image
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Watch Video
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
Mitsubishi PUY-A12NKA7 PKA-A12HA7
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    272 Pounds Learn More
    272 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Cooling Only System
Bundle Includes 2 items
  • product image
    (1) Mitsubishi - 12k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A12NKA7)
  • product image
    (1) Mitsubishi - 12k BTU - P-Series Wall Mounted Unit - Single Zone Only (PKA-A12HA7)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi PUY-A12NKA7 PKA-A12HA7

Overview for the Mitsubishi Ductless PUY-A12NKA7 PKA-A12HA7 Wall Mounted Air Conditioning System

Overview for the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser
This Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.

But why purchase the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.

The Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser has Ductless Inverter technology.
Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUY-A12NKA7 Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.

Overview for the Mitsubishi Ductless PKA-A12HA7 Wall Mounted Air Conditioner Air Handler
The P-Series Mitsubishi Ductless Mini split Mr. Slim unit delivers flexible and convenient cooling solutions to almost any commercial or large residential setting. Whether in a church, an office building, a school, a nursing home, a restaurant, a retail store, or even an equipment room, the compact design of the Mitsubishi Ductless PKA-A12HA7 Wall Mounted Air Conditioner Air Handler makes cooling difficult spaces a breeze. The Mitsubishi Ductless Mini Split P-Series equipment has various types. Each application type can be a perfect solution from almost any application.

Are there different type of Mitsubishi P-Series Ductless Air Conditioners?
Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Wall Mounted equipment which is PCA Series or if you're looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.

The Mitsubishi Ductless PKA-A12HA7 Wall Mounted Air Conditioner Air Handler is a versatile piece of Ductless technology.
Similar to the Mitsubishi Ductless Mini Split M-Series units the Mitsubishi Ductless PKA-A12HA7 Wall Mounted Air Conditioner Air Handler fills larger spaces with substantial cooling from a compact, wall-mounted package. Walk into any room where a Mitsubishi Ductless PKA-A12HA7 Wall Mounted Air Conditioner Air Handler is installed, and all you'll notice is the perfectly comfortable climate. What you may not notice is the unit itself, for it mounts high on the wall and blends into the space.
  • Precision Temperature Control Technology
  • The PUY-A12NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the PKA-A12HA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.
  • This system can maintain operation down to -20° outdoor temperature with the optional wind baffle.
  • Product Note
    This product requires the following accessories for installation:
    • Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 2 items
    • product kit image

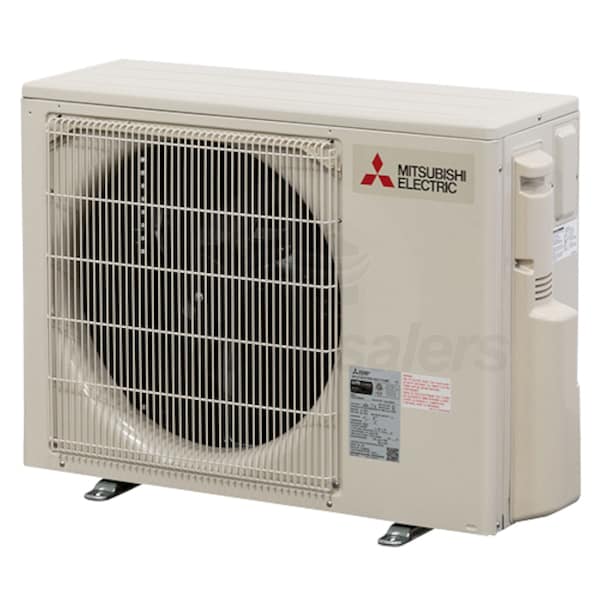

      Mitsubishi - 12k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only
      Model: PUY-A12NKA7
      Item Number: 84633
      Quantity: 1
    • product kit image

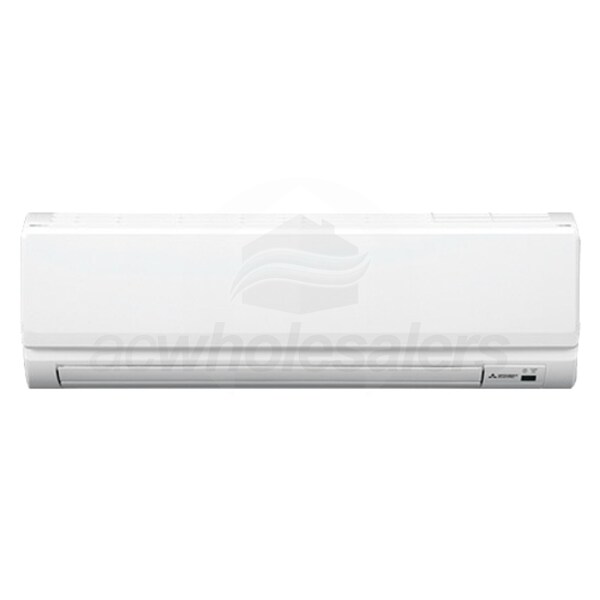

      Mitsubishi - 12k BTU - P-Series Wall Mounted Unit - Single Zone Only
      Model: PKA-A12LA.TH
      Item Number: 84624
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Cooling Only System
    General Information
    Type
    Wall Mounted
    Product Line
    P-Series
    Product Category
    Mini Split Cooling Only System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.8
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    Cooling Power Input
    1000 Watts
    Minimum Outdoor Temperature for Cooling
    23 F
    Dimensions
    Product Weight
    272 Pounds
    Shipping Weight
    305 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201754526
    General Information
    Type
    Outdoor Condenser
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    34 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    11 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    165 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    25 Inches
    Product Width
    32 Inches
    Product Depth
    11 Inches
    Product Weight
    58 Pounds
    Shipping Weight
    69 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating BTU
    18000
    Moisture Removal
    5.2 Pints/Hour
    Maximum Air Flow
    425 CFM
    Minimum Air Flow
    320 CFM
    Minimum Sound Level
    36 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    43 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    11 5/8 Inches
    Product Width
    35 3/8 Inches
    Product Depth
    9 13/16 Inches
    Product Weight
    39 Pounds
    Shipping Weight
    33 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
    View More
    Share
    ×
    Mitsubishi - 12k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 20.8 SEER
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Loading
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Watch Video
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    Mitsubishi PUY-A12NKA7 PKA-A12HA7
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
