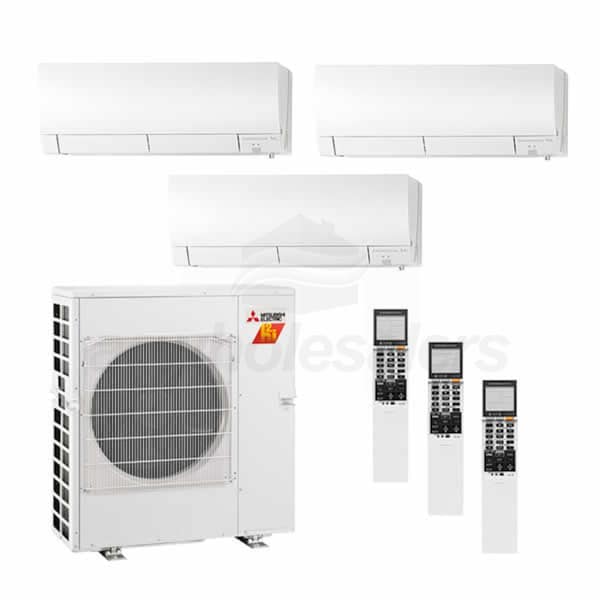

Mitsubishi 36,000 BTU 18 SEER h2i Tri Zone Heat Pump System 12+12+12

Model: MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E Item Number: 67627
Ask a Question
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
PREVIOUS
NEXT
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Enlarge Image
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    Weight
    276 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    M-Series
View More
Bundle Includes 5 items
  • (1) Mitsubishi 28,600 BTU Ductless Multi Zone Hyper Heat Pump Condenser (MXZ-3C30NAHZ2-U1)
  • (3) Mitsubishi 12,000 BTU Ductless Heat Pump 3D I-SEE Sensor Air Handler (MSZ-FH12NA)
  • (1) Mitsubishi Port Adaptor 1/2 Inch Female to 3/8 Inch Male (MAC-A455JP-E)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ-3C30NAHZ2 3-MSZ-FH12NA MAC-A455JP-E

Mitsubishi's dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a Hyper-Heating H2i MXZ-3C30NAHZ2 outdoor condenser to provide efficient cooling and subzero heating through three advanced MSZ-FH wall mounted indoor units. These indoor units feature Mitsubishi's i-See sensor, which automatically detects where heating or cooling is needed. Three wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    MXZ-3C30NAHZ2-U1 Specifications
    MSZ-FH12NA Specifications
    MAC-A455JP-E Specifications
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Sub-line
    Hyper-Heating
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    12 + 12 + 12
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    30000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    SEER Learn More
    19.1
    EER Learn More
    12.5
    HSPF Learn More
    11.0
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    276 Pounds
    Shipping Weight
    280 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7451794
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    30000
    Maximum Sound Level Learn More
    58 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    29.9 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    41 7/24 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    189 Pounds
    Shipping Weight
    199 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    FH-Series
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Moisture Removal
    1.9 Pints/Hour
    Maximum Air Flow
    398 CFM
    Minimum Air Flow
    137 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    41 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 11/16 Inches
    Product Width
    36 7/16 Inches
    Product Depth
    9 3/16 Inches
    Product Weight
    29 Pounds
    Shipping Weight
    35 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    General Information
    Type
    Port Adapter
    Connection Type
    Flared
    Dimensions
    End 1 Connection Size
    1/2 Inch
    End 2 Connection Size
    3/8 Inch
    Product Weight
    0.5 Pounds
    Warranty Information
    Parts Warranty
    90 Days
