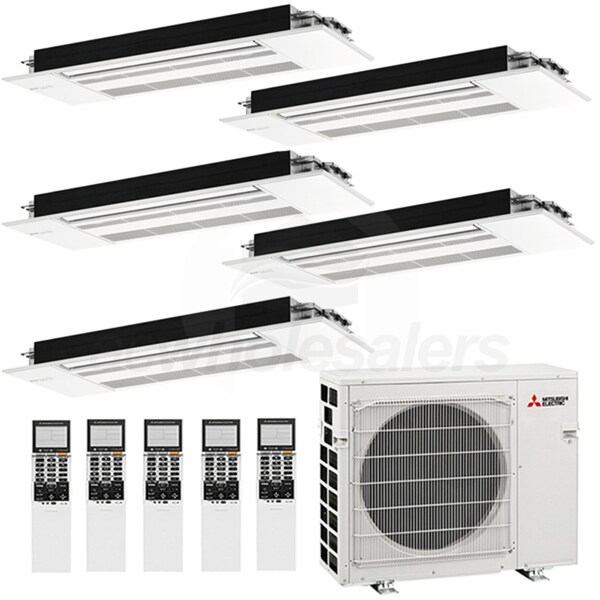

Mitsubishi One-Way Ceiling Cassette 5-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k + 12k Indoor - 19.7 SEER

Model: M5H42O0909091212 Item Number: 82816
Ask a Question
Mitsubishi M5H42O0909091212
PREVIOUS
NEXT
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Enlarge Image
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
Mitsubishi M5H42O0909091212
View All
Our Price: $8,260.35
synchrony card icon
$104 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability December 22, 2021
Mitsubishi One-Way Ceiling Cassette 5-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k + 12k Indoor - 19.7 SEER
Mitsubishi One-Way Ceiling Cassette 5-Zone System - 42,000 BTU Outdoor - 9k + 9k + 9k + 12k + 12k Indoor - 19.7 SEER Model: M5H42O0909091212 Item Number: 82816
$8,260.35
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    359 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    M-Series
View More
Bundle Includes 12 items
  • product image
    (1) Mitsubishi 42,000 BTU Ductless Multi Zone Heat Pump Condenser (MXZ-5C42NA2-U1)
  • product image
    (2) Mitsubishi - 12k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP12NA)
  • product image
    (3) Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP09NA)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi M5H42O0909091212

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a five zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-5C42NA2 outdoor condenser, built with advanced technology, is combined with quiet ceiling cassette MLZ-KP indoor units and five wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes and multiple fan speeds, this is a system that fits the needs of nearly any home.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 12 items
  • product kit image
    Mitsubishi 42,000 BTU Ductless Multi Zone Heat Pump Condenser
    Model: MXZ-5C42NA2-U1
    Item Number: 68693
    Quantity: 1
  • product kit image
    Mitsubishi - 12k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
    Model: MLZ-KP12NA
    Item Number: 82392
    Quantity: 2
  • product kit image
    Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
    Model: MLZ-KP09NA
    Item Number: 82391
    Quantity: 3
  • product kit image
    Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units
    Model: MLP-444W
    Item Number: 82596
    Quantity: 5
  • product kit image
    Mitsubishi Port Adaptor 1/2 Inch Female to 3/8 Inch Male
    Model: MAC-A455JP-E
    Item Number: 30564
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
MXZ-5C42NA2-U1 Specifications
MLZ-KP12NA Specifications
MLZ-KP09NA Specifications
MLP-444W Specifications
MAC-A455JP-E Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
5
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9 + 9 + 9 + 12 + 12
Outdoor Unit Size
42000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
19.7
EER Learn More
9.2
HSPF Learn More
10.3
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
359 Pounds
Shipping Weight
363 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201754913
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
42000
Maximum Sound Level Learn More
58 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
262 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
41 7/24 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
189 Pounds
Shipping Weight
199 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
MLP-444W
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
350 CFM
Minimum Air Flow
212 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Learn More
40 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 5/16 Inches
Product Width
43 3/8 Inches
Product Depth
14 3/16 Inches
Product Weight
34 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
MLP-444W
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
325 CFM
Minimum Air Flow
212 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Learn More
38 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 5/16 Inches
Product Width
43 3/8 Inches
Product Depth
14 3/16 Inches
Product Weight
34 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Grille
Dimensions
Product Weight
5 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Size
1/2 Inch
End 2 Connection Size
3/8 Inch
Product Weight
0.5 Pounds
Warranty Information
Parts Warranty
90 Days
