Mitsubishi Lossnay - 1200 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10-5/8" Duct - Exhaust Defrost

Model: LGH-F1200RX5-E1 Item Number: 57820
Mitsubishi LGH-F1200RX5-E1
PREVIOUS
NEXT

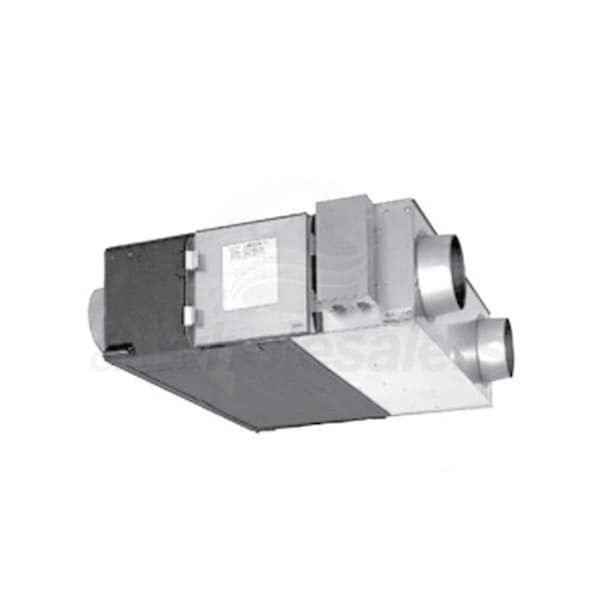

Mitsubishi LGH-F1200RX5-E1
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    265 Pounds Learn More
    265 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
Features
View More

Features

Overview for Mitsubishi LGH-F1200RX5-E1

The LGH-F1200RX5-E1 is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F1200RX5-E1 is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F1200RX5-E1 includes washable MERV 6 filters that keep the core clean by capturing outside pollutants.
Specifications
View More

Specifications

Overview
Product Category
Energy Recovery Ventilators (ERVs)
General Information
Type
ERV
Product Line
Lossnay
Product Category
Energy Recovery Ventilators (ERVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
Housing Material
Galvanized Steel
Core Material
Lossnay Core
Performance
Maximum Air Flow
1200 CFM
Sensible Recovery Efficiency
73 %
Total Recovery Efficiency
68 %
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
40.5 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.1 Amps
Recommended Breaker Size
15 Amps
Dimensions
Duct Connection
10.625 Inches
Product Height
31 7/16 Inches
Product Width
48 1/2 Inches
Product Depth
45 5/8 Inches
Product Weight
265 Pounds
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
