Little Giant EC-1 2.5 GPH 115V Condensate Removal Pump
Little Giant EC-1 2.5 GPH 115V Condensate Removal Pump Model: 553500 Item Number: 89760
$106.29
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    Weight
    1.7 Pounds Learn More
    Type
    Condensate Pump
    UPC
    010121145085
View More
Features
View More

Features

Overview for Little Giant 553500

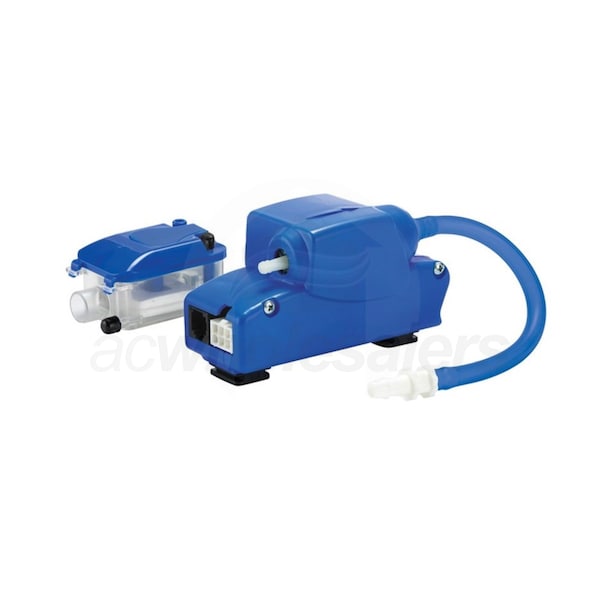

The EC-1 Series is designed to remove condensation for ductless mini-split systems up to 34,000 Btu's , fan coils and suspended ceiling air conditioners. It is equipped with a reservoir tank that connects to a drain hose usually in a flat position. The EC-1 has been designed with an improved noise reducing reliable solid state switching technology. For easy installation there are two brackets that are used to secure both parts of the pump with ease. The two piece set up permits the reservoir, to coincide within the air handler while it is controlled from the outside the air handler.
  • Vibration Dampening Design
  • An elastomeric cushion supports the motor, which isolates inherent motor vibrations andreduces noise transmission.
  • Quick and Easy Installation
  • EC-1 Series is easy to install and service. Mounting brackets allow the motor / controllerand reservoir, to be quickly positioned and slip removed easily during initial install and later during servicing.
  • Advanced Float Design
  • Precision magnets activate Hall Effect sensors within the float to provide pinpoint accuracy forautomatic on / off pump operation and overflow detection.
  • Immediate Visual Inspection
  • A clear reservoir tank provides immediate inspection of the water level, float and filter forquick and accurate servicing.
  • Our SKU number(s): Little Giant 553500
  • The manufacturer model number(s): Little Giant 553500
  • Specifications
    View More

    Specifications

    General Information
    Type
    Condensate Pump
    UPC
    010121145085
    Performance
    Maximum Water Temperature
    140 F
    Suction Lift
    3 Feet
    Maximum Shut Off
    33 feet
    Maximum Sound Level Learn More
    21 dB
    Maximum Ambient Temperature
    140 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Discharge Port Size
    0.25 Inches
    Product Height
    4 5/48 Inches
    Product Width
    2 19/48 Inches
    Product Length
    1 12/15 Inches
    Product Weight
    1.7 Pounds
    Power Cord Length
    5 Feet
    Warranty Information
    Warranty Learn More
    2 Years
