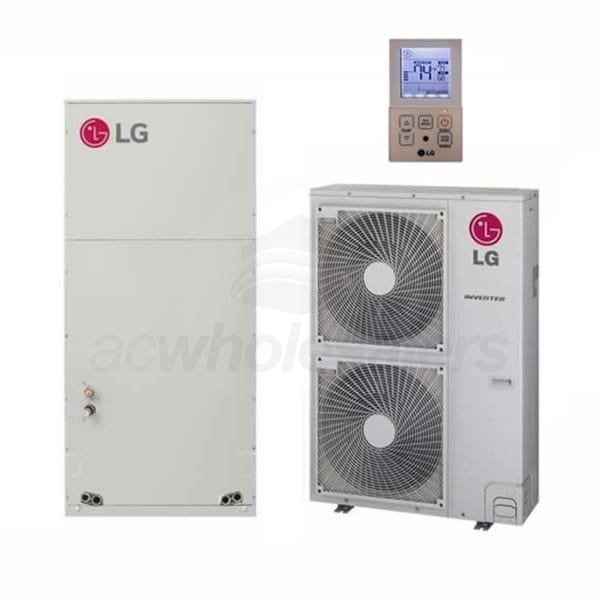

LG LV420HV-A 42,000 BTU 17 SEER Vertical Ducted Heat Pump System

Model: LV420HV-A Item Number: 99306
Ask a Question
LG LV420HV-A
PREVIOUS
NEXT
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
Enlarge Image
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
LG LV420HV-A
View All
Originally $4,771.28, you save 5%
Our Price: $4,532.72
synchrony card icon
$57 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships in 1-2 Business Days
LG LV420HV-A 42,000 BTU 17 SEER Vertical Ducted Heat Pump System
LG LV420HV-A 42,000 BTU 17 SEER Vertical Ducted Heat Pump System Model: LV420HV-A Item Number: 99306
$4,532.72
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    369 Pounds Learn More
    Type
    Ducted Vertical Air Handler
    Product Line
    Multi F
View More
Bundle Includes 4 items
  • product image
    (1) LG 42,000 BTU 17 SEER Ductless Multi Single Heat Pump Condenser (LUU429HV)
  • product image
    (1) LG 42,000 BTU Ducted Vertical Air Conditioner Air Handlers (LVN420HV)
  • product image
    (1) LG Wired Simple Remote Controller (PREMTC00U)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LV420HV-A

LG's devotion to providing efficient heating and cooling solutions can be seen across the LG product line. The LV420HV4-A shows that same devotion. LG's air handling system is designed to provide powerful heating and cooling and can be installed with nearly any pre-existing ducting run. Capable of managing high air speeds and volumes effortlessly, the LV420HV4-A is an impressive solution to your home's heating and cooling needs. A wireless remote is conveniently included to make controlling your air handling system a breeze.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
LUU429HV Specifications
LVN420HV Specifications
PREMTC00U Specifications
PZCWRC1 Specifications
General Information
Type
Ducted Vertical Air Handler
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
42
Outdoor Unit Size
42000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
42000
Cooling Capacity
42000 BTU
Heating Capacity
47000 BTU
SEER Learn More
17.0
EER Learn More
11.0
HSPF Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
5 F
Dimensions
Product Weight
369 Pounds
Shipping Weight
422 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Pending
AHRI Reference Number
203161245
General Information
Type
Outdoor Condenser
Product Line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
42000
Maximum Sound Level Learn More
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
0 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
246 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 17/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
203 Pounds
Shipping Weight
227 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ducted Vertical Air Handler
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
42
Installation Location
Indoor
Performance
Cooling BTU
42000
Cooling Capacity
42000 BTU
Maximum Air Flow
1260 CFM
Minimum Air Flow
1000 CFM
Minimum Sound Level
44 dB
Maximum Sound Level Learn More
48 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
55 3/16 Inches
Product Depth
21 1/4 Inches
Product Length
25 Inches
Product Weight
165 Pounds
Shipping Weight
188 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Maximum Number of Zones
16
Power Source
Hard-Wired
Dimensions
Product Height
4 3/4 Inches
Product Width
5/8 Inch
Product Length
2 3/4 Inches
Product Weight
0.18 Pounds
General Information
Type
Wire Kit
Dimensions
Product Length
33 Feet
Product Weight
0.25 Pounds
Certifications
Country of Origin
Korea
