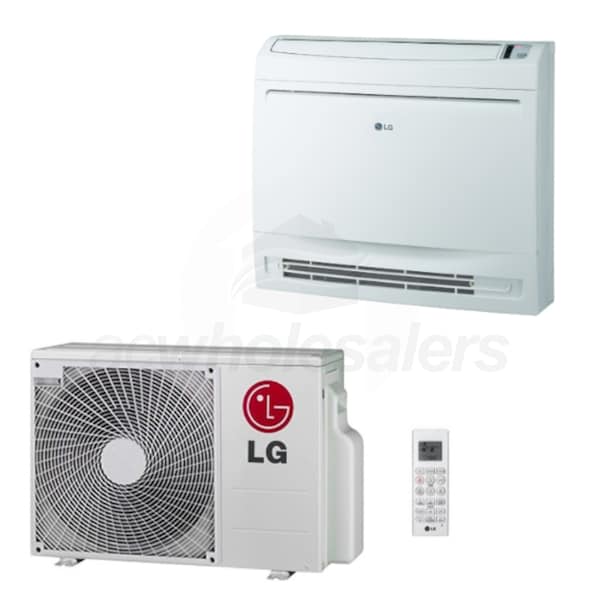

LG 9,000 BTU 21.0 SEER Low Wall Console Air Conditioning System

Model: LUU097HV LQN090HV4 Item Number: 106676
Ask a Question
LG LUU097HV LQN090HV4
PREVIOUS
NEXT
LG LUU097HV LQN090HV4
LG LUU097HV LQN090HV4
Enlarge Image
LG LUU097HV LQN090HV4
LG LUU097HV LQN090HV4
View All
Originally $2,067.00, you save 5%
Our Price: $1,963.65
synchrony card icon
$328 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships in 1-3 Business Days
LG 9,000 BTU 21.0 SEER Low Wall Console Air Conditioning System
LG 9,000 BTU 21.0 SEER Low Wall Console Air Conditioning System Model: LUU097HV LQN090HV4 Item Number: 106676
$1,963.65
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    110.4 Pounds Learn More
    Type
    Floor Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • product image
    (1) LG 9,000 BTU Ductless Heat Pump Air Conditioner Condenser (LUU097HV)
  • product image
    (1) LG 9,000 BTU Low Wall Console Unit (LQN090HV4)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LUU097HV LQN090HV4

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. LG's Low Wall Console is perfect for areas where you don't have the ceiling height or wall space to allow for a wall mounted unit. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. Over the years, LG has strived to meet the demand for high quality air conditioning solutions with greater energy efficiency, helping the environment while also reducing electricity costs for consumers.
Product Note
LG Low Wall Consoles can be mounted to the floor or to the wall with a maximum of 9-27/32" from the floor. LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 2 items
  • product kit image
    LG 9,000 BTU Ductless Heat Pump Air Conditioner Condenser
    Model: LUU097HV
    Item Number: 71412
    Quantity: 1
  • product kit image
    LG 9,000 BTU Low Wall Console Unit
    Model: LQN090HV4
    Item Number: 106101
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
LUU097HV Specifications
LQN090HV4 Specifications
General Information
Type
Floor Mounted
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
10100 BTU
SEER Learn More
21.0
EER Learn More
12.6
HSPF Learn More
10.4
Cooling Power Input
710 Watts
Heating Power Input
810 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
-4 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Product Weight
110.4 Pounds
Shipping Weight
122.5 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
205049408
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
1/3 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 23/48 Inches
Product Width
33 47/48 Inches
Product Depth
13 11/12 Inches
Product Weight
82 Pounds
Shipping Weight
89 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Floor Mounted
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
9
Motor Type
Digital Controlled
Installation Location
Indoor
Electric Heat
Yes
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
11000 BTU
Maximum Air Flow
304 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
27 dB
Maximum Sound Level Learn More
38 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
27 9/16 Inches
Product Width
23 5/8 Inches
Product Depth
8 13/48 Inches
Product Weight
36 Pounds
Shipping Weight
42 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
UL Listed
Yes
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
