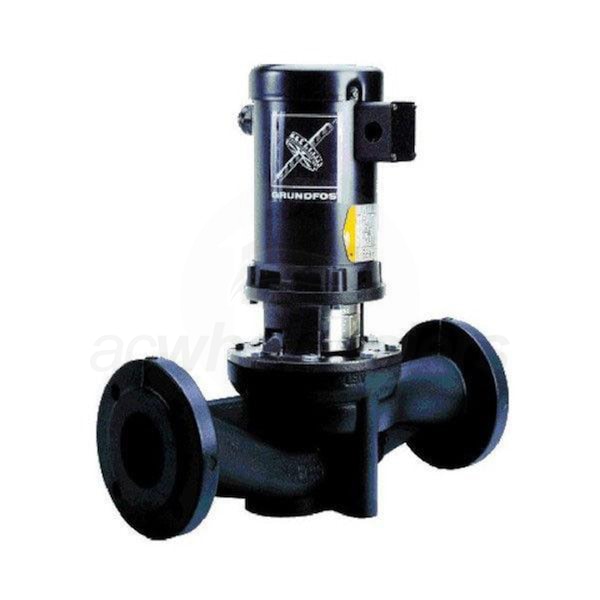

Grundfos TP80-160/2 Direct Coupled In-Line Circulator, 3 HP, Bronze, 208-230/460V, GF 80 Flange Mount
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
157 Pounds 157 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Boiler Accessories
UPC
05700390525552
View More
+Share This Product
Features
Features
Overview for Grundfos 96411834
The Grundfos TP80-160/2 is a direct coupled, single-stage, in-line centrifugal pump with a mechanical shaft seal and the world-renowned IE3 as its standard motor. Grundfos' Blueflux motors are among the most efficient motors available, and are engineered for maximum efficiency at both full and part-capacity. Since it maintains a very high level of efficiency over a broad range of operations, it is ideal for an array of applications. The TP 80-160/2 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this bronze pump include: district heating/cooling, industrial cooling/processes, boiler/hydronic heating, domestic hot water, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
Advanced fan design
Results in dramatically reduced noise levels
All-in-one-solution
The coupling and shaft are friction-welded together in order to create a completely stable mechanical unit, drastically reducing the vibration levels and prolongs the lifetime of the shaft seals and bearings
Mechanically and hydraulically balanced impeller
Further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
Anti-corrosion surface
Cataphoresis surface treatment consisting of Powercon cathodic electrocoating and zinc phosphate coating results in maximal protection against corrosion and a longer lasting inside surface that keeps efficiency high
Renewable neck rings
Makes it easy to upgrade your pump when necessary
Unique design of shaft seal chamber
Eliminates the need for external piping and ensures optimal water circulation, prolonging the lifetime of the shaft seal
Grundfos Blueflux IE3
Only motors with the official IE3 logo are certified maximum efficiency motors
Compact perfection
A large shaft diameter and a short distance from the impeller to the motor maximizes stability and results in lower maintenance costs
Specifications
Specifications
Overview
Product Category
Boiler Accessories
UPC
05700390525552
General Information
Product Line
TP80-160/2
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Bronze
Drive Type
Close-Coupled
DHW Compatible DHW CompatibleCan be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
150 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Phase
3
Frequency
60 Hz
Dimensions
Connection Size
3 Inches
Product Height
19 Inches
Product Width
23 Inches
Product Depth
8 Inches
Product Weight
157 Pounds
Shipping Weight
167 Pounds
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
2 Years
