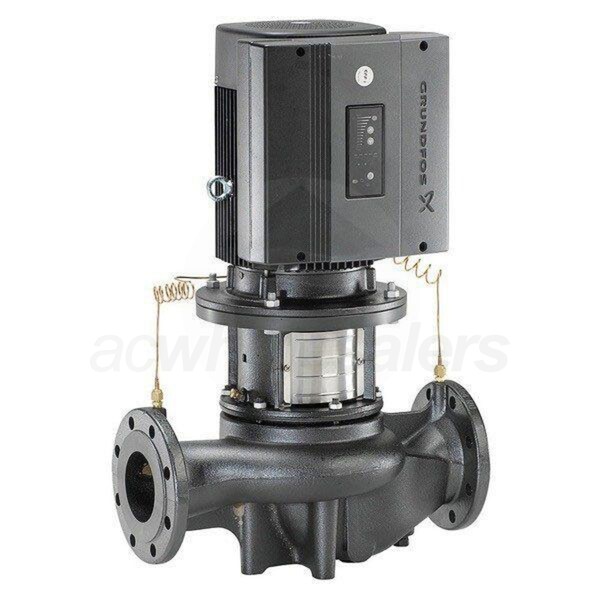

Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount

Model: 91136596 Item Number: 36690
Grundfos 91136596
PREVIOUS
NEXT
Grundfos 91136596
Enlarge Image
Our Price: $6,523.00
synchrony card icon
$82 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount
Grundfos TPE50-160/2 E-Circulator Pump, 1-1/2 HP, Bronze, 208-230V, GF 50 Flange Mount Model: 91136596 Item Number: 36690
$6,523.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    110 Pounds Learn More
    110 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700838068764
Features
View More

Features

Overview for Grundfos 91136596

The Grundfos TPE50-160/2 is a single-stage, in-line centrifugal pump with a standard motor and mechanical shaft seal. It is a close-coupled type, meaning the pump and motor are separate units, which results in the pump being less sensitive to impurities in the pumped liquid than similar pump of the canned rotor type. This unit's motor features a built-in variable frequency drive, which gradually ramps the motor up to operating capacity rather than abruptly subjecting the motor to a high starting torque and current, which ultimately lessens the mechanical and electrical stress, reduces maintenance and repair costs, and extends the life of the equipment while maintaining an optimal comfort level. This model allows for several configurations and control methods such as constant pressure, temperature or flow via an external signal from either a sensor or a controller. Typical applications include: heating, district heating, air-conditioning, district cooling, industrial cooling, industrial processes and water supply.
  • Grundfos 91136596 Features
  • Significant energy savings
  • Increased comfort
  • Control and monitoring of pump performance
  • Communication with the pump
  • Bronze construction
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700838068764
    General Information
    Product Line
    TPE50-160/2
    Product Category
    Boiler Accessories
    Motor Type
    Variable Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Bronze
    Drive Type
    Close-Coupled
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    52.5 Feet
    Maximum Flow Rate
    92.9 GPM
    Minimum Fluid Temperature
    5 F
    Maximum Fluid Temperature
    284 F
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Phase
    3
    Frequency
    60 Hz
    Dimensions
    Connection Size
    2 Inches
    Product Height
    14 Inches
    Product Width
    20 5/8 Inches
    Product Depth
    10 1/2 Inches
    Product Weight
    110 Pounds
    Shipping Weight
    117 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    2 Years
