Goodman 5 Ton 16.0 SEER 97% AFUE Hybrid Dual Fuel Air Conditioner

Model: GSZC180601 GMVM971005CN CAPF4961C6 TX5N4 Item Number: 92371
Ask a Question
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
PREVIOUS
NEXT
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Enlarge Image
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
View All
Originally $7,101.00
Add to Cart for Lower Price
$80 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman 5 Ton 16.0 SEER 97% AFUE Hybrid Dual Fuel Air Conditioner
Goodman 5 Ton 16.0 SEER 97% AFUE Hybrid Dual Fuel Air Conditioner Model: GSZC180601 GMVM971005CN CAPF4961C6 TX5N4 Item Number: 92371
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    544 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Modulating
View More

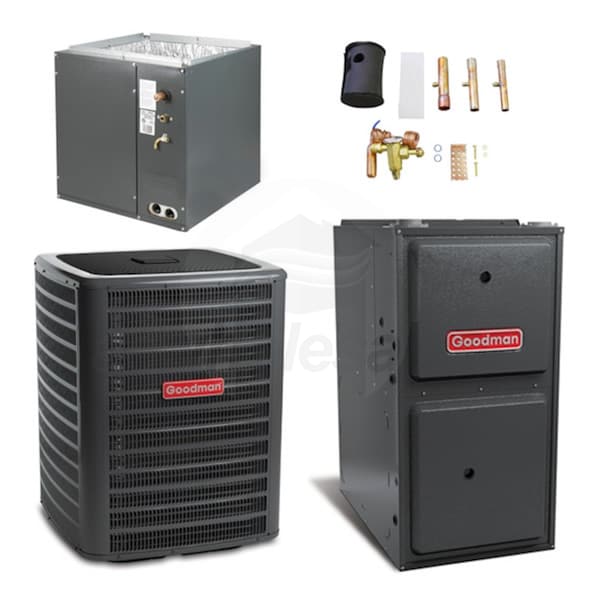

Bundle Includes 4 items
  • (1) Goodman 5 Ton 18 SEER Heat Pump Condenser 2 Stage Communicating (GSZC180601)
  • (1) Goodman 97% AFUE 100,000 BTU Variable Speed Upflow Gas Furnace (GMVM971005CN)
  • (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZC180601 GMVM971005CN CAPF4961C6 TX5N4

A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZC two-stage heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a GMVM furnace equipped with an ECM variable speed motor. This pair was specifically chosen to provide efficient comfort year round. A cased coil and valve kit are included, making this kit an affordable, efficient, whole home solution.
  • AHRI Reference Number: 10570283 * *May change based on the Manufacturer revision
  • The manufacturer model number(s): GSZC180601 GMVM971005CN CAPF4961C6 TX5N4
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    GSZC180601 Specifications
    GMVM971005CN Specifications
    CAPF4961C6 Specifications
    TX5N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating
    Blower Motor
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    97 %
    Capacity Learn More
    5.0 Tons
    Cooling Capacity
    55000 BTU
    Nominal Cooling Capacity
    60000 BTU
    Heating BTU
    100000
    SEER Learn More
    16.0
    EER Learn More
    12.5
    HSPF Learn More
    9.0
    Maximum Air Flow
    1520 CFM
    Dimensions
    Product Weight
    544 Pounds
    Shipping Weight
    558 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10570283
    General Information
    Type
    Condenser
    Product Line
    GSZC18
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Two
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    57000 BTU
    Heating Capacity
    60000 BTU
    SEER Learn More
    18.0
    Maximum Sound Level Learn More
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    31 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    40 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    319 Pounds
    Shipping Weight
    339 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    Compressor Warranty
    LIFETIME Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMVM97
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Modulating
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    97 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    97000 BTU
    Low Fire Input
    50000 BTU
    Low Fire Output
    48500 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15.4 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    144 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7424268
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
