Goodman 2 Ton 16 SEER 96% AFUE Hybrid Dual Fuel Air Conditioner

Model: GSZ160241 CAPF3137 GMVC960803 Item Number: 87372
Ask a Question
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
View All
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Goodman GSZ160241 CAPF3137 GMVC960803
Enlarge Image

Price Match

PLUS Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$3,674.00
6 In-Stock
Ships Wednesday, Nov 14th
Free Shipping *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Free Lift Gate *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Goodman 2 Ton 16 SEER 96% AFUE Hybrid Dual Fuel Air Conditioner Model: GSZ160241 CAPF3137 GMVC960803 Item Number: 87372
$3,674.00
6 In-Stock
QTY
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Save For Later
Ask a Question
Condition: New This product is new and has never been used. It's in its original packaging, which has not been opened.
Specification Highlights
    Orientation
    Dedicated Upflow
View More
Bundle Includes 4 items
  • (1) Goodman GMVC96 - 80k BTU - Two-Stage Gas Furnace - 96% AFUE (GMVC960803BN)
  • (1) Goodman GSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160241)
  • (1) Goodman CAPF - 2.5 - 3.0 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (CAPF3137B6)
View Full Bundle
Recommended Accessories
Required Accessories Add All Required
Optional Accessories
Features & Bundle Details

Features & Bundle Details

Overview for Goodman GSZ160241 CAPF3137 GMVC960803

    Overview for Goodman GSZ160241 CAPF3137B6 GMVC960803BN TX2N4

    Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing - building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
  • AHRI Reference Number: 8327056* *May change based on the Manufacturer revision
  • The manufacturer model number(s): Goodman GSZ160241 CAPF3137B6 GMVC960803BN TX2N4
Bundle Includes 4 items
Specifications

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
GMVC960803BN Specifications
GSZ160241 Specifications
CAPF3137B6 Specifications
TX2N4A Specifications
General Information
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Dedicated Upflow
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Heating Capacity
80000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
General Information
Type
Gas Furnace
Product Line
GMVC96
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Variable-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
Performance
Nominal Heating Capacity
80000 BTU
High Fire Input
80000 BTU
High Fire Output
76800 BTU
Low Fire Input
56000 BTU
Low Fire Output
53760 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Maximum Air Flow
1200 CFM
Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
34.5 Inches
Product Width
17.5 Inches
Product Depth
28.75 Inches
Shipping Weight
120 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7368834
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Heat Pump
Product Line
GSZ16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling and Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Heating Capacity
24000 BTU
Nominal Cooling Capacity
24000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.7 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
34.625 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
180 Pounds
Shipping Weight
200 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.75 Inches
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
5 Years

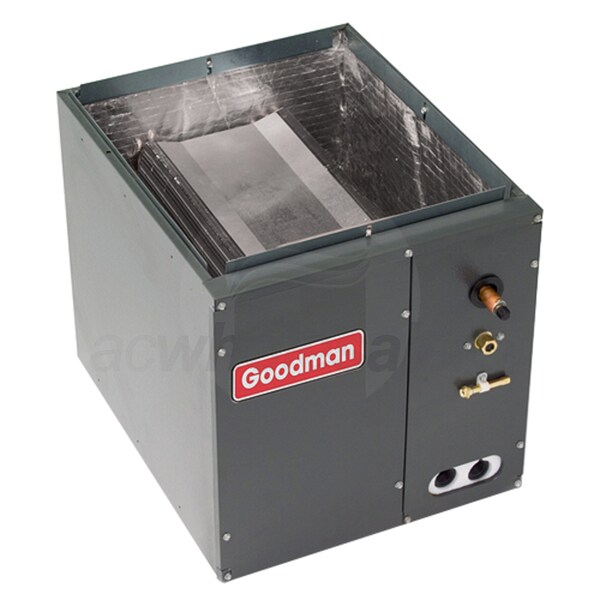

General Information
Type
Evaporator Coil
Product Line
CAPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 - 3 Tons
Nominal Minimum Cooling Capacity
30000 BTU
Nominal Cooling Capacity
36000 BTU
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.75 Inches
Product Height
30 Inches
Product Width
17.5 Inches
Product Depth
21 Inches
Shipping Weight
53 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Refrigerant Type
R-410A
Dimensions
Shipping Weight
2 Pounds
