Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 80% AFUE - Upflow

Model: GSZ1449GMES80100U Item Number: 102106
Ask a Question
Goodman GSZ1449GMES80100U
PREVIOUS
NEXT
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Enlarge Image
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
Goodman GSZ1449GMES80100U
View All
Originally $3,752.00
Add to Cart for Lower Price
synchrony card icon
$60 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 80% AFUE - Upflow
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 80% AFUE - Upflow Model: GSZ1449GMES80100U Item Number: 102106
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    390 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Single Stage
View More

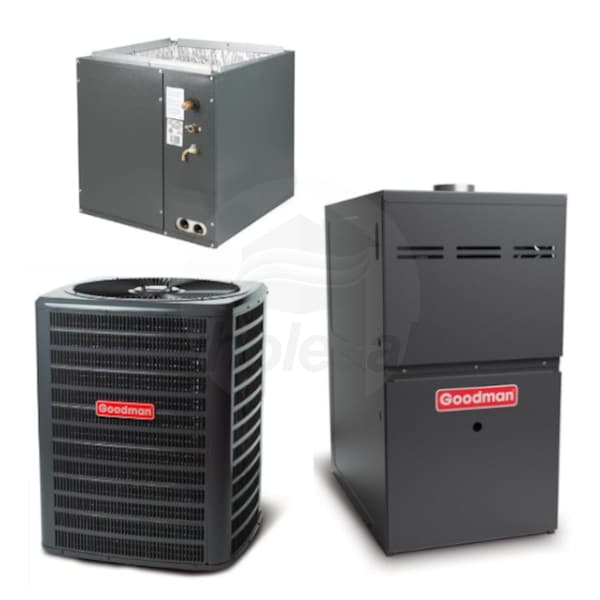

Bundle Includes 3 items
  • product image
    (1) Goodman 4 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140491)
  • product image
    (1) Goodman 80% AFUE 100,000 BTU 1 Stage Upflow Gas Furnace Heater (GMES801005CX)
  • product image
    (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZ1449GMES80100U

A Goodman heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a single stage GMES80 furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil and valve kit are included, making this kit an affordable, efficient, whole home solution.
  • AHRI Reference Number: 203384631 * *May change based on the Manufacturer revision
  • The manufacturer model number(s): GSZ140491 GMES801005CX CAPF4961C6
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSZ140491 Specifications
    GMES801005CX Specifications
    CAPF4961C6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Single Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    80 %
    Capacity Learn More
    4.0 Tons
    Cooling Capacity
    44500 BTU
    Nominal Cooling Capacity
    48000 BTU
    Heating BTU
    100000
    SEER Learn More
    14.0
    EER Learn More
    12.0
    HSPF Learn More
    8.5
    Maximum Air Flow
    1595 CFM
    Dimensions
    Product Weight
    390 Pounds
    Shipping Weight
    404 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203384631
    General Information
    Type
    Condenser
    Product Line
    GSZ14
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 Tons
    Cooling BTU
    48000
    Cooling Capacity
    48000 BTU
    SEER Learn More
    14.0
    Maximum Sound Level Learn More
    76 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    26 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    34 1/2 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    183 Pounds
    Shipping Weight
    199 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMES80
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Chimney Vent
    Modulating/Staging Learn More
    Single Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    80 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    80000 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.45 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    21 Inches
    Product Height
    33 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 Inches
    Product Weight
    132 Pounds
    Shipping Weight
    132 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    203401033
    Warranty Information
    Parts Warranty Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
