Goodman - 3.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation

Model: GSZ1436GMEC96060U Item Number: 76066
Goodman GSZ1436GMEC96060U
PREVIOUS
NEXT
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Enlarge Image
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Watch Video
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
Goodman GSZ1436GMEC96060U
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    349 Pounds Learn More
    349 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
Bundle Includes 4 items
  • product image

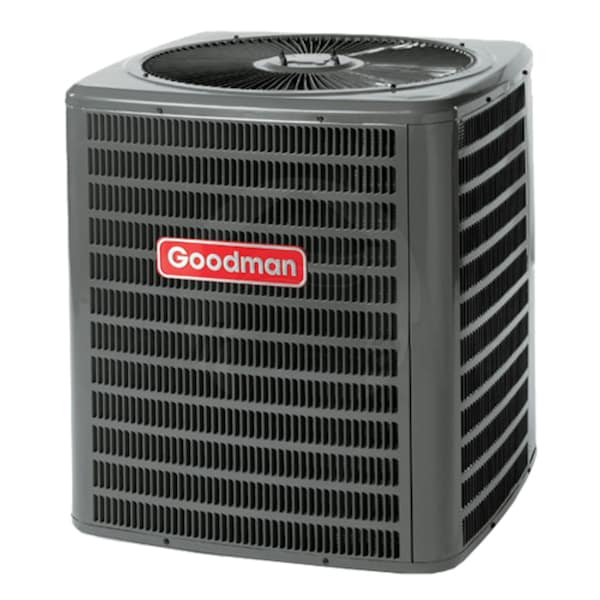

    (1) Goodman 3 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140361)
  • product image
    (1) Goodman 96% AFUE 60,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960603BN)
  • product image

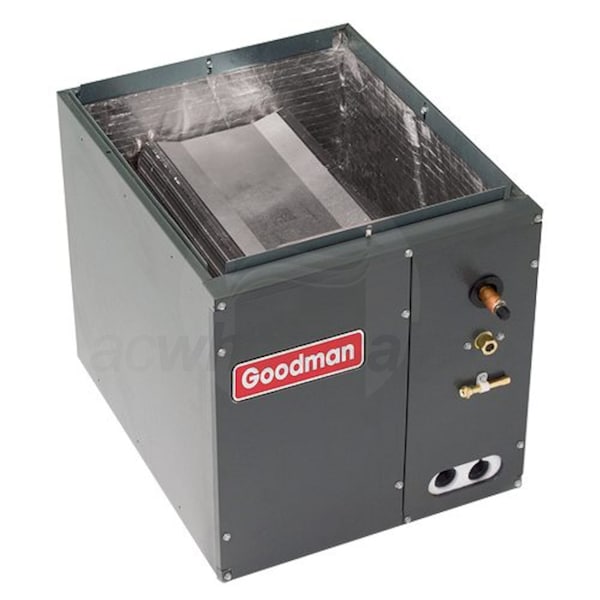

    (1) Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF3137B6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZ1436GMEC96060U

A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a two stage GMEC furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil and valve kit are included, making this kit an affordable, efficient, whole home solution.
  • AHRI Reference Number: 7995264 * *May change based on the Manufacturer revision
  • The manufacturer model number(s): GSZ140361 GMEC960603BN CAPF3137B6 TX3N4
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling Capacity
    34600 BTU
    Nominal Cooling Capacity
    36000 BTU
    Heating BTU
    60000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    8.20
    Maximum Air Flow
    1020 CFM
    Dimensions
    Product Weight
    349 Pounds
    Shipping Weight
    369 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7995264
    General Information
    Type
    Condenser
    Product Line
    GSZ14
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    20 Amps
    Recommended Breaker Size
    35 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    183 Pounds
    Shipping Weight
    199 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Heating BTU
    60000
    High Fire Input
    60000 BTU
    High Fire Output
    57600 BTU
    Low Fire Input
    42000 BTU
    Low Fire Output
    40320 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    115 Pounds
    Shipping Weight
    115 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7423787
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 - 3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type

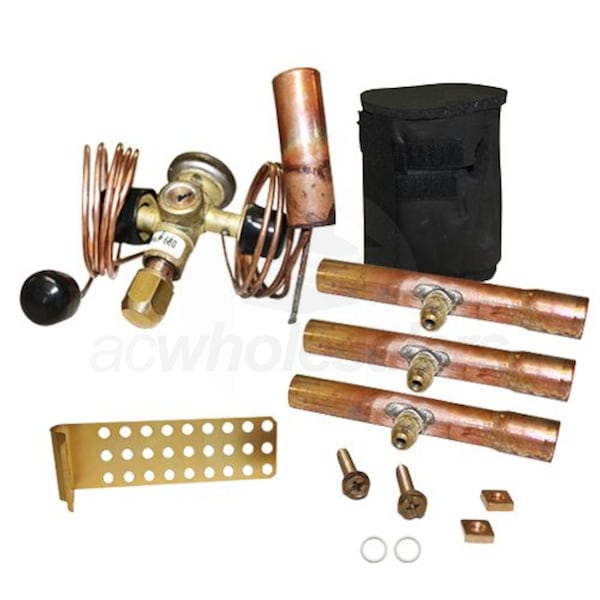

    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
