Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation

Model: GSZ1430GMEC96080U Item Number: 76060
Ask a Question
Goodman GSZ1430GMEC96080U
PREVIOUS
NEXT
Goodman GSZ1430GMEC96080U
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Enlarge Image
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Watch Video
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
Goodman GSZ1430GMEC96080U
View All
Originally $3,582.00
Add to Cart for Lower Price
synchrony card icon
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation Model: GSZ1430GMEC96080U Item Number: 76060
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    323 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 3 items
  • product image
    (1) Goodman 2.5 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140301)
  • product image

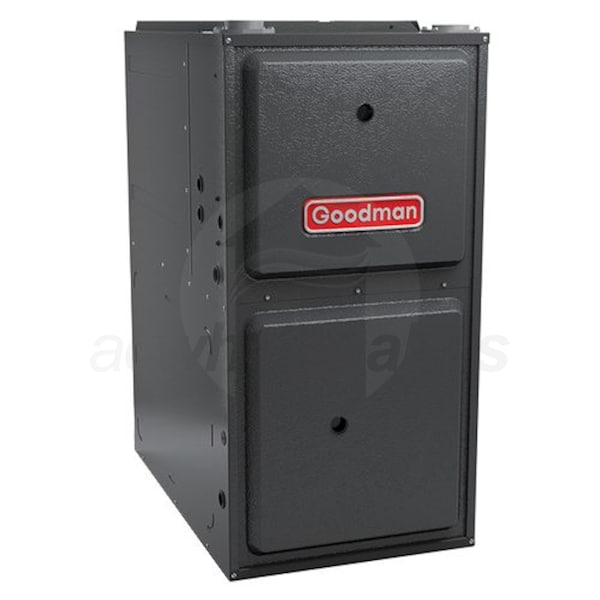

    (1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960803BN)
  • product image

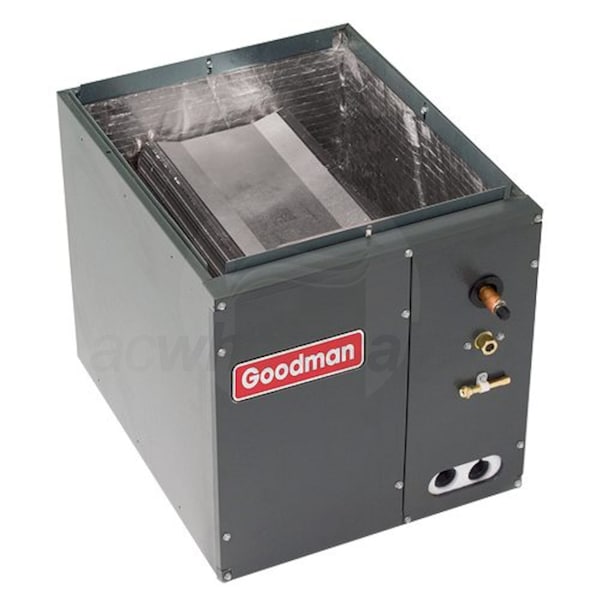

    (1) Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF3137B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZ1430GMEC96080U

A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a two stage GMEC furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil is included, making this kit an affordable, efficient, whole home solution.
  • AHRI Reference Number: 7995141 * *May change based on the Manufacturer revision
  • The manufacturer model number(s): GSZ140301 GMEC960803BN CAPF3137B6
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSZ140301 Specifications
    GMEC960803BN Specifications
    CAPF3137B6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    2.5 Tons
    Cooling Capacity
    28400 BTU
    Nominal Cooling Capacity
    30000 BTU
    Heating BTU
    80000
    SEER Learn More
    14.0
    EER Learn More
    11.5
    HSPF Learn More
    8.50
    Maximum Air Flow
    990 CFM
    Dimensions
    Product Weight
    323 Pounds
    Shipping Weight
    343 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7995141
    General Information
    Type
    Condenser
    Product Line
    GSZ14
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling BTU
    30000
    Cooling Capacity
    30000 BTU
    SEER Learn More
    14.0
    Maximum Sound Level Learn More
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    18 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    156 Pounds
    Shipping Weight
    172 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    76800 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    53760 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    118 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7423788
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 - 3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
