Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 18.0 SEER - 96% AFUE - For Downflow Installation

Model: GSXC1848GCVC96100U Item Number: 80981
Ask a Question
Goodman GSXC1848GCVC96100U
PREVIOUS
NEXT
Goodman GSXC1848GCVC96100U
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Enlarge Image
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Watch Video
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
Goodman GSXC1848GCVC96100U
View All
Originally $6,187.00
Add to Cart for Lower Price
synchrony card icon
$67 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 18.0 SEER - 96% AFUE - For Downflow Installation
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 18.0 SEER - 96% AFUE - For Downflow Installation Model: GSXC1848GCVC96100U Item Number: 80981
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    487 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 4 items
  • product image

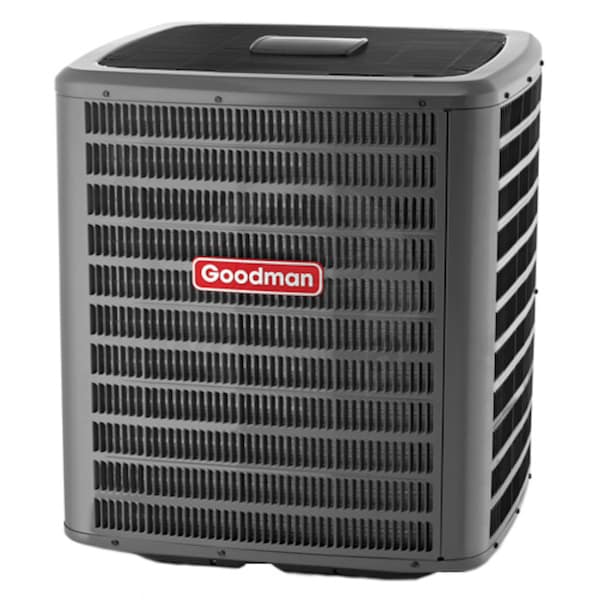

    (1) Goodman 4 Ton 18 SEER Air Conditioner Condenser 2 Stage Communicating (GSXC180481)
  • product image
    (1) Goodman 96% AFUE 100,000 BTU Variable Speed Downflow Gas Furnace (GCVC961005CN)
  • product image
    (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC1848GCVC96100U

A Goodman high efficiency central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXC18 air conditioner, a GCVC961005CN furnace, and a cased evaporator coil. With a SEER rating of 18 and a two-stage compressor, it is more efficient and consistent than a single stage counterpart. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXC1848GCVC96100U air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSXC180481 GCVC961005CN CAPF4961C6 TX5N4
  • AHRI Reference Number: 10332510 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSXC180481 Specifications
    GCVC961005CN Specifications
    CAPF4961C6 Specifications
    TX5N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    4.0 Tons
    Cooling Capacity
    48000 BTU
    Nominal Cooling Capacity
    48000 BTU
    Heating BTU
    100000
    SEER Learn More
    18.0
    EER Learn More
    13.0
    Maximum Air Flow
    1450 CFM
    Dimensions
    Product Weight
    487 Pounds
    Shipping Weight
    518 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10332510
    General Information
    Type
    Condenser
    Product Line
    GSXC18
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Two
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 Tons
    Cooling BTU
    48000
    Cooling Capacity
    48000 BTU
    SEER Learn More
    18.0
    Maximum Sound Level Learn More
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    28 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    42 1/4 Inches
    Product Width
    35 3/4 Inches
    Product Depth
    35 3/4 Inches
    Product Weight
    276 Pounds
    Shipping Weight
    298 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    General Information
    Type
    Gas Furnace
    Product Line
    GCVC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    96000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    67200 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    14.4 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    145 Pounds
    Shipping Weight
    145 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7368844
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
