Goodman 4 Ton 16 SEER Air Conditioner Variable Speed Split System
Goodman 4 Ton 16 SEER Air Conditioner Variable Speed Split System Model: GSXC160481 AVPTC59C14 Item Number: 89523
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    407 Pounds Learn More
    407 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
Bundle Includes 2 items
  • product image

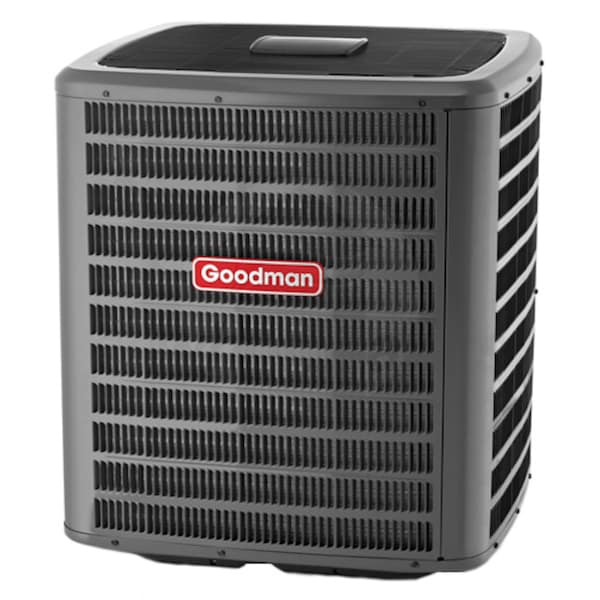

    (1) Goodman 4 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating (GSXC160481)
  • product image
    (1) Goodman 4 to 5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC59C14)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC160481 AVPTC59C14

  • The manufacturer model number(s): Goodman GSXC160481 AVPTC59C14
  • AHRI Reference Number: 10492008 * *May change based on the Manufacturer revision
  • Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling Capacity
    46500 BTU
    Nominal Cooling Capacity
    48000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    Maximum Air Flow
    1420 CFM
    Dimensions
    Product Weight
    407 Pounds
    Shipping Weight
    429 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10492008
    General Information
    Type
    Condenser
    Product Line
    GSXC16
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling BTU
    48000
    Cooling Capacity
    48000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    27 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    37 Inches
    Product Width
    35 3/4 Inches
    Product Depth
    35 3/4 Inches
    Product Weight
    263 Pounds
    Shipping Weight
    285 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor
    Variable-Speed
    Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Installation Location
    Indoor
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    48000
    Maximum Air Flow
    1420 CFM
    Minimum Air Flow
    930 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    53 7/16 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    109 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
    Product Category
    Air Handler
