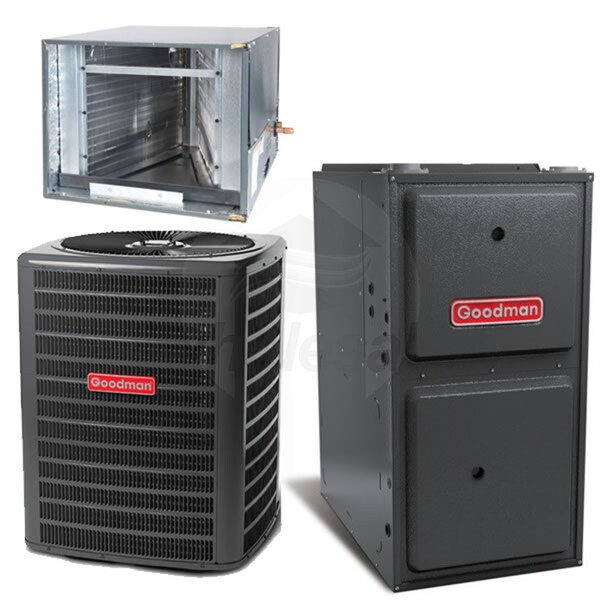

Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 15.0 SEER - 97% AFUE - For Horizontal Installation

Model: GSX1648GMVM97080H Item Number: 75686
Ask a Question
Goodman GSX1648GMVM97080H
PREVIOUS
NEXT
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Enlarge Image
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
Goodman GSX1648GMVM97080H
View All
Originally $4,749.00
Add to Cart for Lower Price
synchrony card icon
$51 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 15.0 SEER - 97% AFUE - For Horizontal Installation
Goodman - 4.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 15.0 SEER - 97% AFUE - For Horizontal Installation Model: GSX1648GMVM97080H Item Number: 75686
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    438 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Modulating
View More
Bundle Includes 3 items
  • product image
    (1) Goodman 98% AFUE 80,000 BTU Variable Speed Upflow Gas Furnace (GMVM970804CN)
  • product image
    (1) Goodman 4 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160481)
  • product image
    (1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1648GMVM97080H

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX16 air conditioner, a GMVM97 furnace, and a cased evaporator coil. The GSX16 provides you with an impressive SEER rating of 16 and the GMVM97 provides you with efficient variable speed heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1648GMVM97080H air conditioner and furnace kit fits the bill perfectly.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. This kit contains a furnace that is narrower than the coil supplied. The included Z-bracket should be used to make the connection between the furnace and coil. Please see the coil installation manual under the "Manuals" tab for more information.
Bundle Includes 3 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
GMVM970804CN Specifications
GSX160481 Specifications
CHPF4860D6 Specifications
General Information
Operating Mode Learn More
Heating and Cooling
Modulating/Staging Learn More
Modulating
Blower Motor
ECM Variable-Speed
Coil Width
24.5 Inches
Configuration Learn More
Horizontal
DOE Regional Compliance Learn More
Nationwide (Except CA, TX and UT)
Performance
AFUE Learn More
97 %
Capacity Learn More
4.0 Tons
Cooling Capacity
45000 BTU
Heating BTU
80000
SEER Learn More
15.0
EER Learn More
12.5
Maximum Air Flow
1520 CFM
Dimensions
Product Weight
438 Pounds
Shipping Weight
460 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7356733
General Information
Type
Gas Furnace
Product Line
GMVM97
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Direct Vent
Modulating/Staging Learn More
Modulating
Blower Motor
ECM Variable-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
97 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
77600 BTU
Low Fire Input
40000 BTU
Low Fire Output
38800 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7424267
Warranty Information
Unit Replacement Warranty
10 Years
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Condenser
Product Line
GSX16
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
4.0 Tons
Cooling BTU
48000
Cooling Capacity
46000 BTU
SEER Learn More
16.0
Maximum Sound Level Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24 Amps
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
219 Pounds
Shipping Weight
241 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
77 Pounds
Shipping Weight
87 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
