Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi-Speed Furnace Kit - 15.0 SEER - 80% AFUE - Horizontal

Model: GSX1636GMES80080H Item Number: 101754
Ask a Question
Goodman GSX1636GMES80080H
PREVIOUS
NEXT
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Enlarge Image
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
Goodman GSX1636GMES80080H
View All
Originally $2,716.00
Add to Cart for Lower Price
synchrony card icon
$408 / Month
Suggested monthly payments with 6 month financing.
Ships in 4-6 Weeks
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi-Speed Furnace Kit - 15.0 SEER - 80% AFUE - Horizontal
Goodman - 3.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi-Speed Furnace Kit - 15.0 SEER - 80% AFUE - Horizontal Model: GSX1636GMES80080H Item Number: 101754
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    361 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Single Stage
View More
Bundle Includes 3 items
  • product image
    (1) Goodman 3 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160361)
  • product image
    (1) Goodman 80% AFUE 80,000 BTU 1 Stage Upflow Gas Furnace Heater (GMES800805CX)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3642C6)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1636GMES80080H

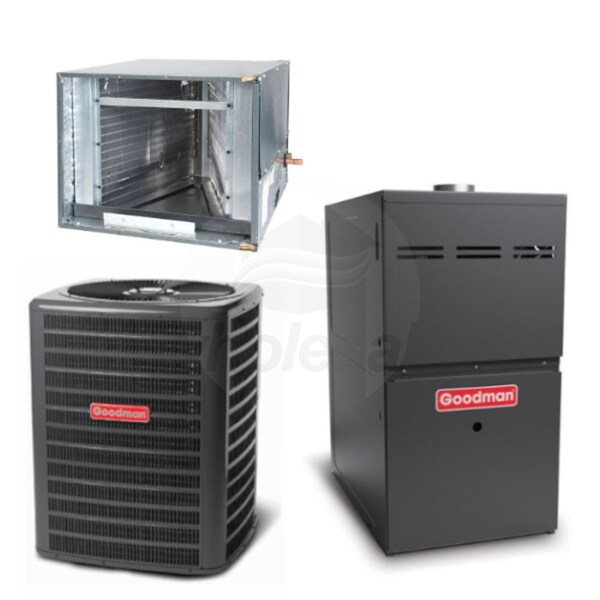

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX16 air conditioner, a GMES80 furnace, and a cased evaporator coil. The GSX16 provides you with an impressive SEER rating of 16 and the GMES80 provides you with multi-speed heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1636GMES80080H air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX160361 GMES800805CX CHPF3642C6
  • AHRI Reference Number: 203381477 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSX160361 Specifications
    GMES800805CX Specifications
    CHPF3642C6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Single Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Horizontal
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    80 %
    Capacity Learn More
    3.0 Tons
    Cooling Capacity
    34000 BTU
    Nominal Cooling Capacity
    36000 BTU
    Heating BTU
    80000
    SEER Learn More
    15.0
    EER Learn More
    12.5
    Maximum Air Flow
    1030 CFM
    Dimensions
    Product Weight
    361 Pounds
    Shipping Weight
    375 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203381477
    General Information
    Type
    Condenser
    Product Line
    GSX16
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    35000 BTU
    SEER Learn More
    16.0
    Maximum Sound Level Learn More
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    19 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    38 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    162 Pounds
    Shipping Weight
    180 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMES80
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Chimney Vent
    Modulating/Staging Learn More
    Single Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    80 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.45 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    21 Inches
    Product Height
    33 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 Inches
    Product Weight
    132 Pounds
    Shipping Weight
    132 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    203401032
    Warranty Information
    Parts Warranty Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CHPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Horizontal
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.0 - 3.5 Tons
    Cooling BTU
    42000
    Nominal Minimum Cooling Capacity
    36000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    21 Inches
    Product Width
    26 Inches
    Product Depth
    21 1/8 Inches
    Product Weight
    63 Pounds
    Shipping Weight
    73 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
