Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 80% AFUE - Horizontal

Model: GSX1460GMEC80080H Item Number: 101578
Ask a Question
Goodman GSX1460GMEC80080H
PREVIOUS
NEXT
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Enlarge Image
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
Goodman GSX1460GMEC80080H
View All
Originally $3,682.00
Add to Cart for Lower Price
synchrony card icon
$58 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 80% AFUE - Horizontal
Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 80% AFUE - Horizontal Model: GSX1460GMEC80080H Item Number: 101578
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    474 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More

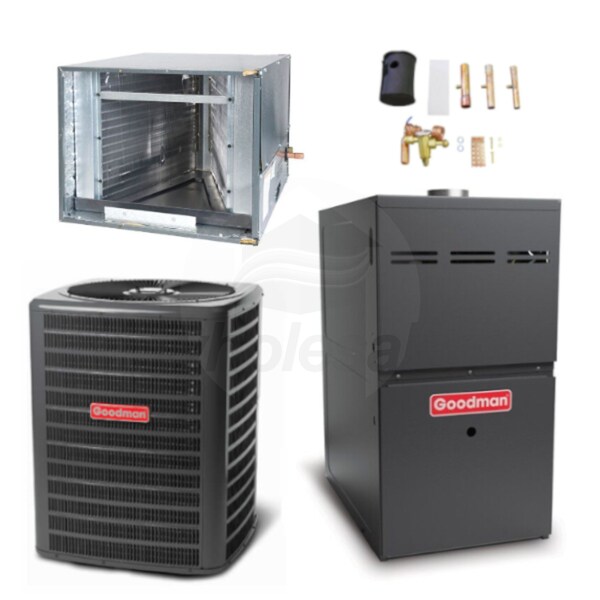

Bundle Includes 4 items
  • product image
    (1) Goodman 5 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140601)
  • product image
    (1) Goodman 80% AFUE 80,000 BTU 2 Stage Upflow/Horizontal Gas Furnace (GMEC800805DX)
  • product image
    (1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1460GMEC80080H

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX14 air conditioner, a GMEC80 furnace, and a cased evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1460GMEC80080H air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX140601 GMEC800805DX CHPF4860D6 TX5N4
  • AHRI Reference Number: 203910784 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSX140601 Specifications
    GMEC800805DX Specifications
    CHPF4860D6 Specifications
    TX5N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    24.5 Inches
    Configuration Learn More
    Horizontal
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    80 %
    Capacity Learn More
    5.0 Tons
    Cooling Capacity
    56000 BTU
    Nominal Cooling Capacity
    60000 BTU
    Heating BTU
    80000
    SEER Learn More
    14.0
    EER Learn More
    11.7
    Maximum Air Flow
    1590 CFM
    Dimensions
    Product Weight
    474 Pounds
    Shipping Weight
    488 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203910784
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    60000 BTU
    SEER Learn More
    14.0
    EER Learn More
    11.7
    Maximum Sound Level Learn More
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    33 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    38 1/4 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    260 Pounds
    Shipping Weight
    280 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC80
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Chimney Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    80 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    44800 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15.32 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    24 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    28 Inches
    Product Weight
    129 Pounds
    Shipping Weight
    129 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    203761964
    Warranty Information
    Parts Warranty Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CHPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Horizontal
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    24 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    21 1/8 Inches
    Product Weight
    77 Pounds
    Shipping Weight
    87 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
